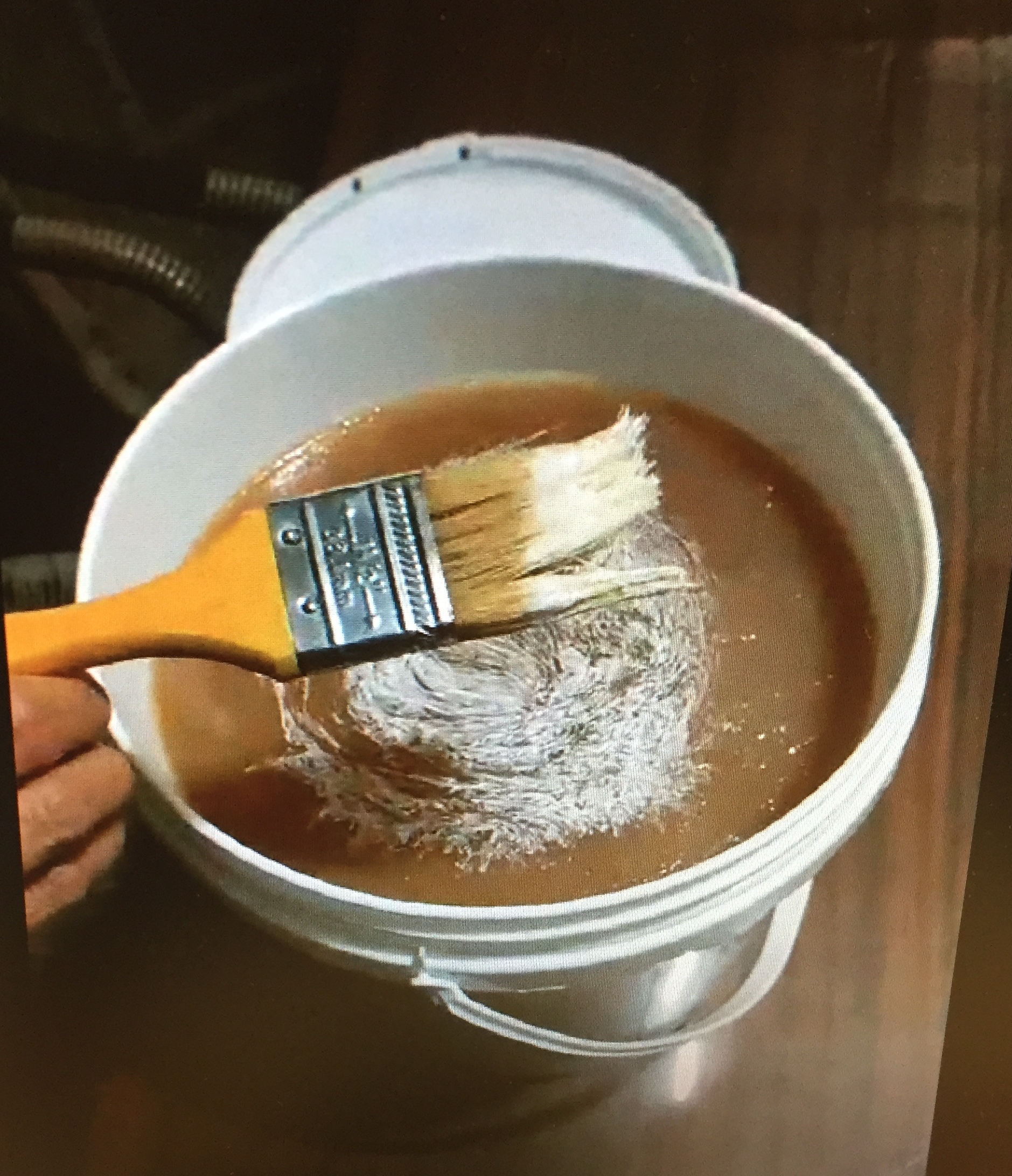

Tyre mounting lubricant
Item No. F446
FINGO’s tyre mounting lubricant assured high quality effect in terms of tyre mounting or demounting procedure for the service center. The reformatory formula improved lubricant better efficiency, which reduce the rubber friction and decrease bead lip damage.
Also FINGO’s tyre mounting lubricant make more environmentally – friendly acceptable. The lubricants limited low-hazard category or is not required at all. So it was not rust for the wheel rim. Package: 5 kgs per drum.

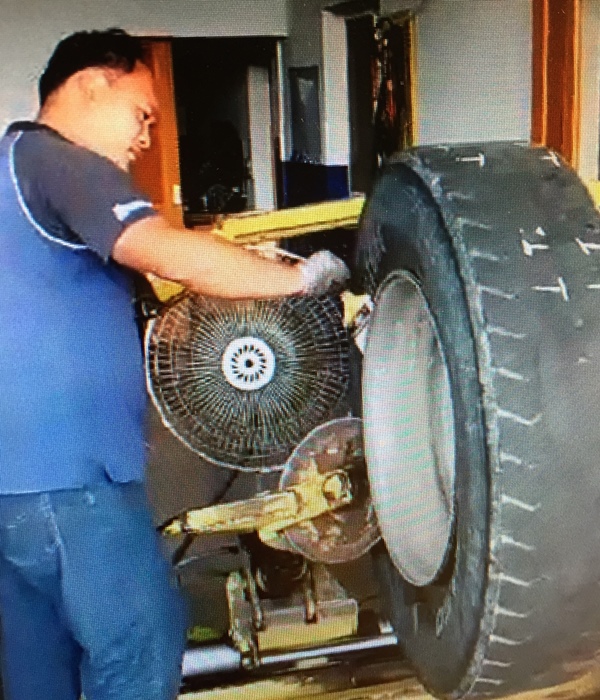

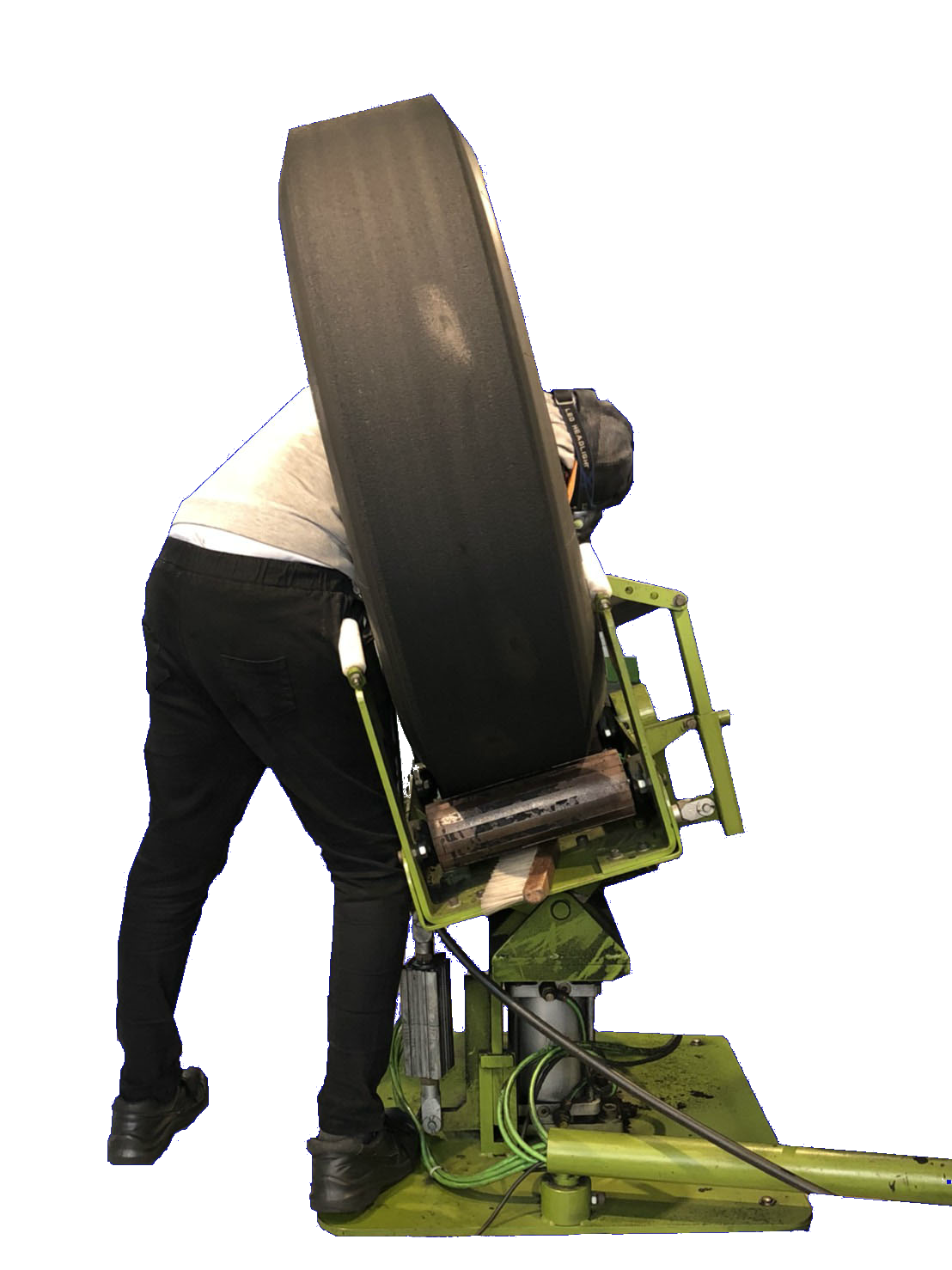

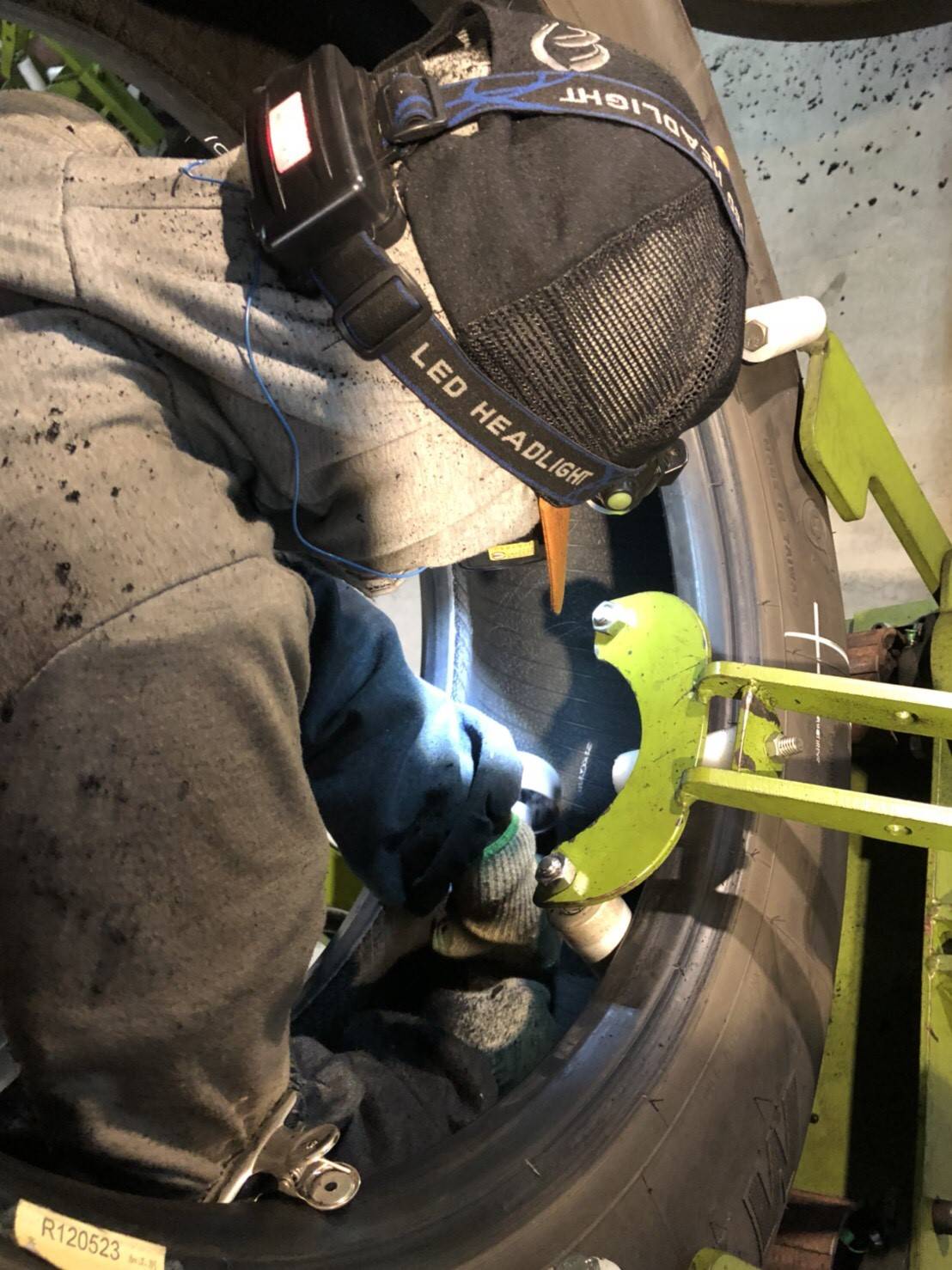

Tyre expander for inspection ( trucks ) F445
Item No. F445
How to increase the inspection efficiency of truck tyre for retreaded process ? The tyre expander was designed to expand the both sides of tyre and rotated the tyre by control switch as requested convenience.
The solid construction of tyre expander was enable easy inspection of tyre damage.
Also repair the damage tyre smoothly. Most of repair jobs will be finish on the tyre expander for puncture repair by retreaded tyre patch and filled the gap revamped.
This tyre expander was suitable for repair of car and truck tyres from 14” to 24”.

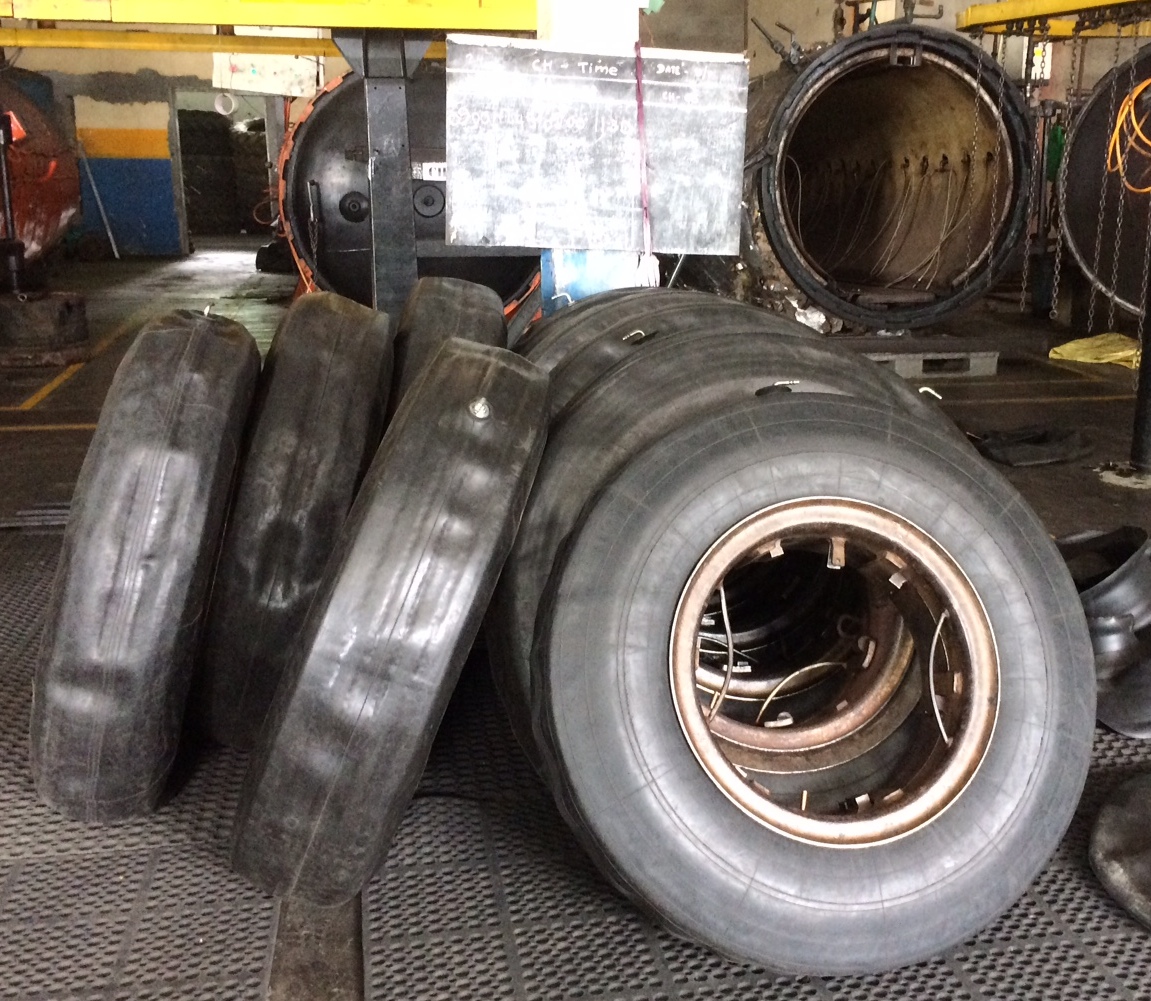

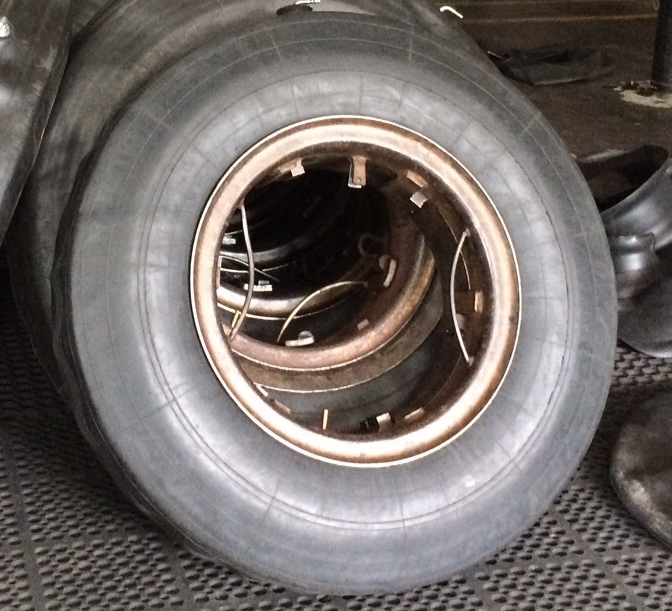

Curing envelop F5420
The high quality Envelop were suitable for any pre-cured tyre retreading system. That’s a well-made of soft and heat resistant compound. The envelop reinforced the hole valve and top seamless construction especially careful.
|
Item |
Suggested tyre size |
O.D. |
I.D. |
B.B |
1x20’ Loading |
|
F5420 |
1000R22, 12R24.5 |
44” |
22” |
30” |
2,001 pcs |
|
F5421 |
11R22.5, 1200R22.5, 315 / 80R22.5, ARC system |
44” |
16” |
36” |
3 pcs/carton, 2,001 pcs |
|
F5422 |
1100R24.5, 315/80R22.5, 385 / 80R22.5, 275 / 80R22.5 |
44” |
18” |
34” |
3 pcs/carton, 2,001 pcs |
|
F5423 |
1100R20, 1200R20, 315 / 80R22.5, 1200R22.5, 11R22.5, 12R22.5 |
42” |
18” |
30” |
3 pcs/carton, 2,142 pcs |
|
F5424 |
900R20, 1000R20, 275 / 80R22.5, 305 / 70R19.5 |
40” |
18” |
28” |
3 pcs/carton, 2,175 pcs |
|
F5425 |
900R15, 825R16, 900R16, 825R17, 900R19.5 |
35” |
15” |
25” |
4 pcs/ carton 2,856 pcs |
|
F5426 |
950R16.5, 875R16.5, 825R15, 760R15, 750R15, 700R17, 700R16, 235 / 85R16, 235 / 75R15 |
31 |
15 |
20 |
4 pcs/ carton 2,900 pcs |
|
F5427 |
700R16, 700R15, 650R16, 600R16, 250R15, 235/75R15, 215/75R17.5, 215R15, 215R14, 205/75R16, 28X9-15, 8-17.5 |
29 |
15 |
17 |
4 pcs/ carton 2,900 pcs |

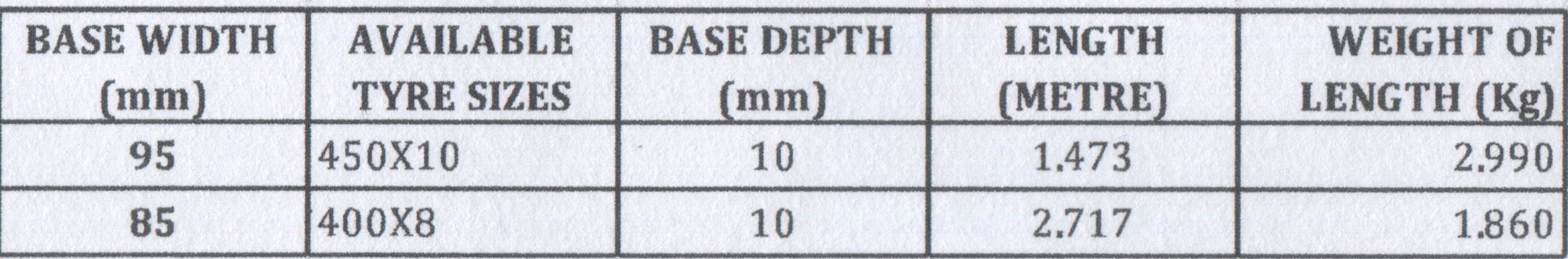

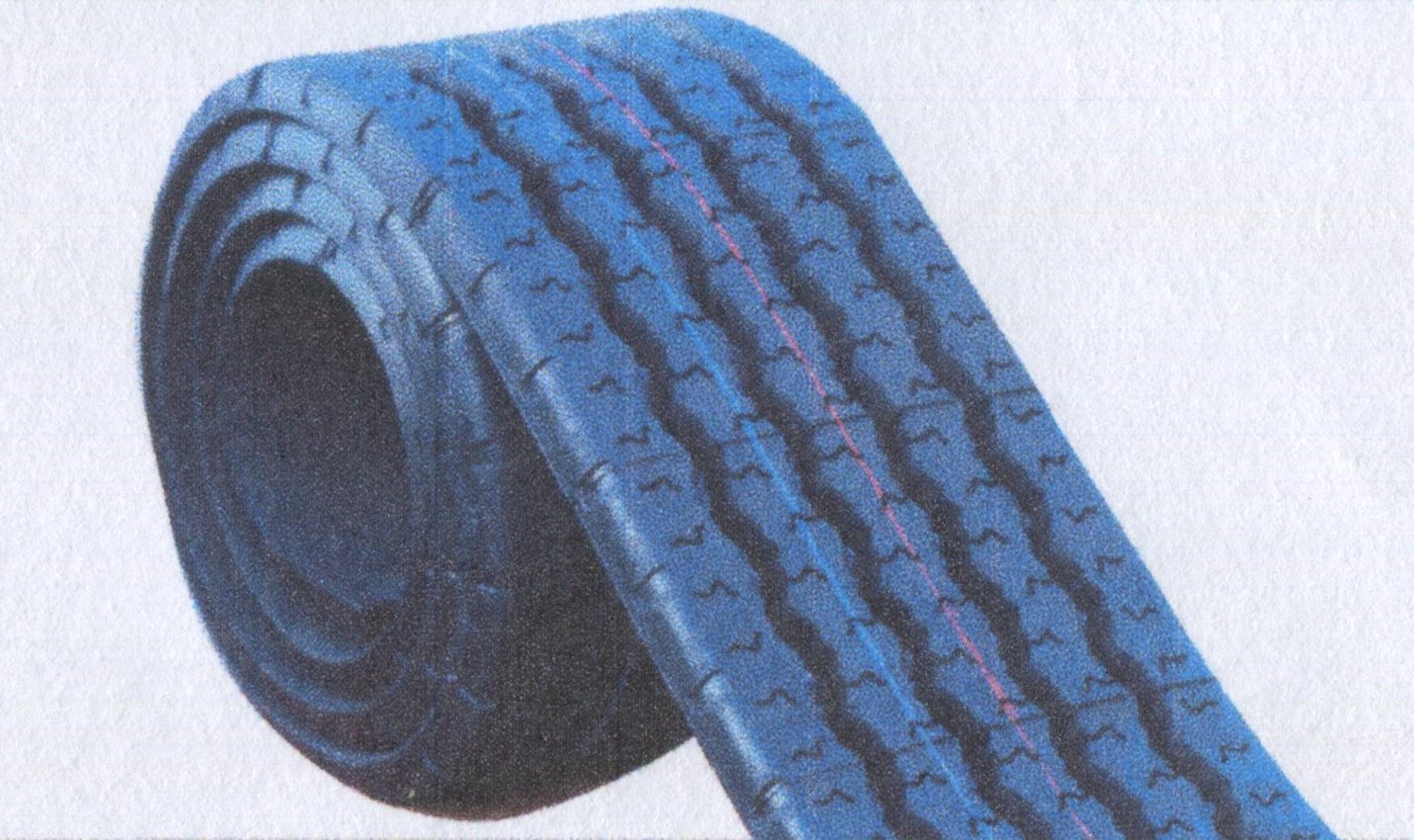

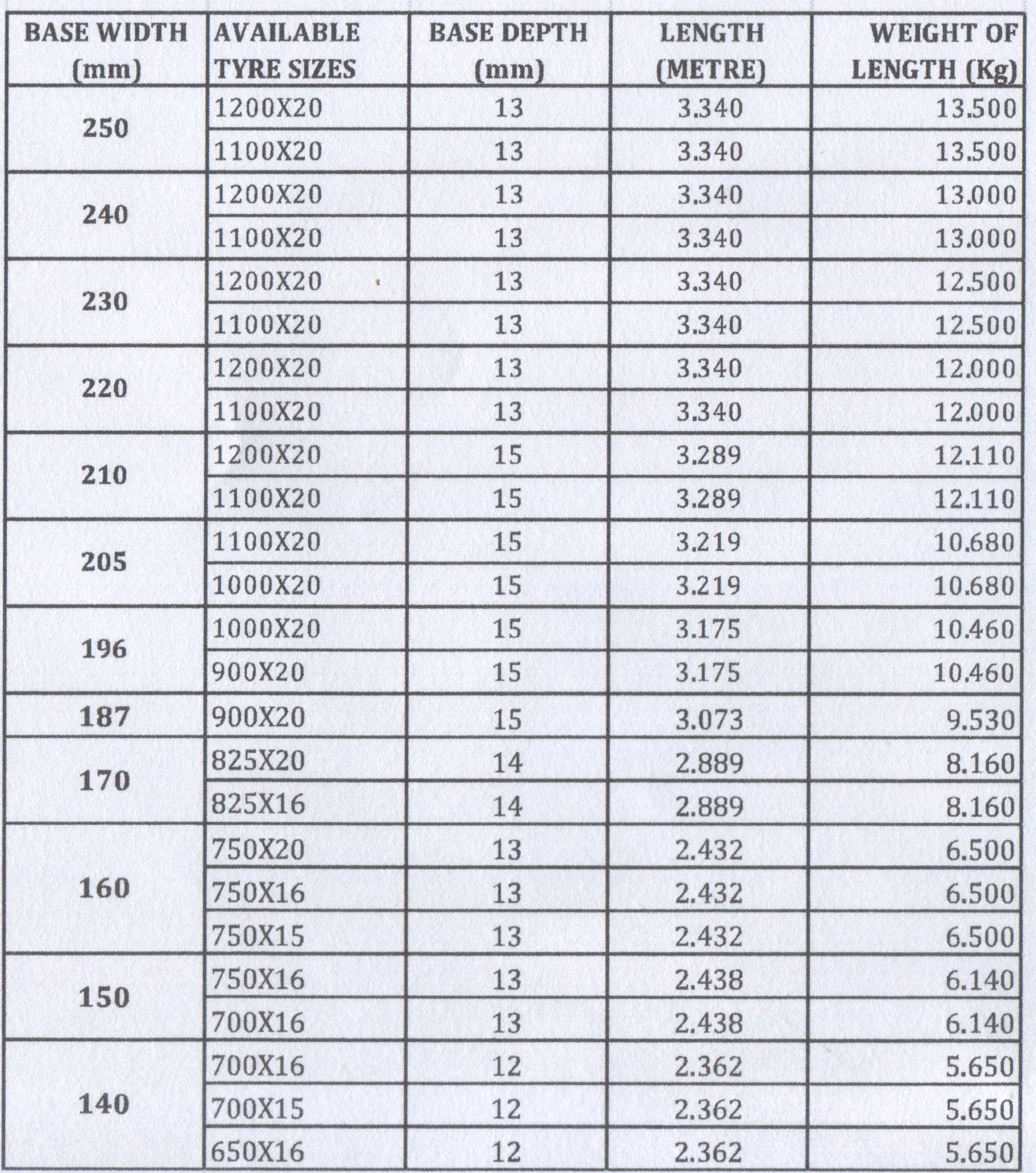

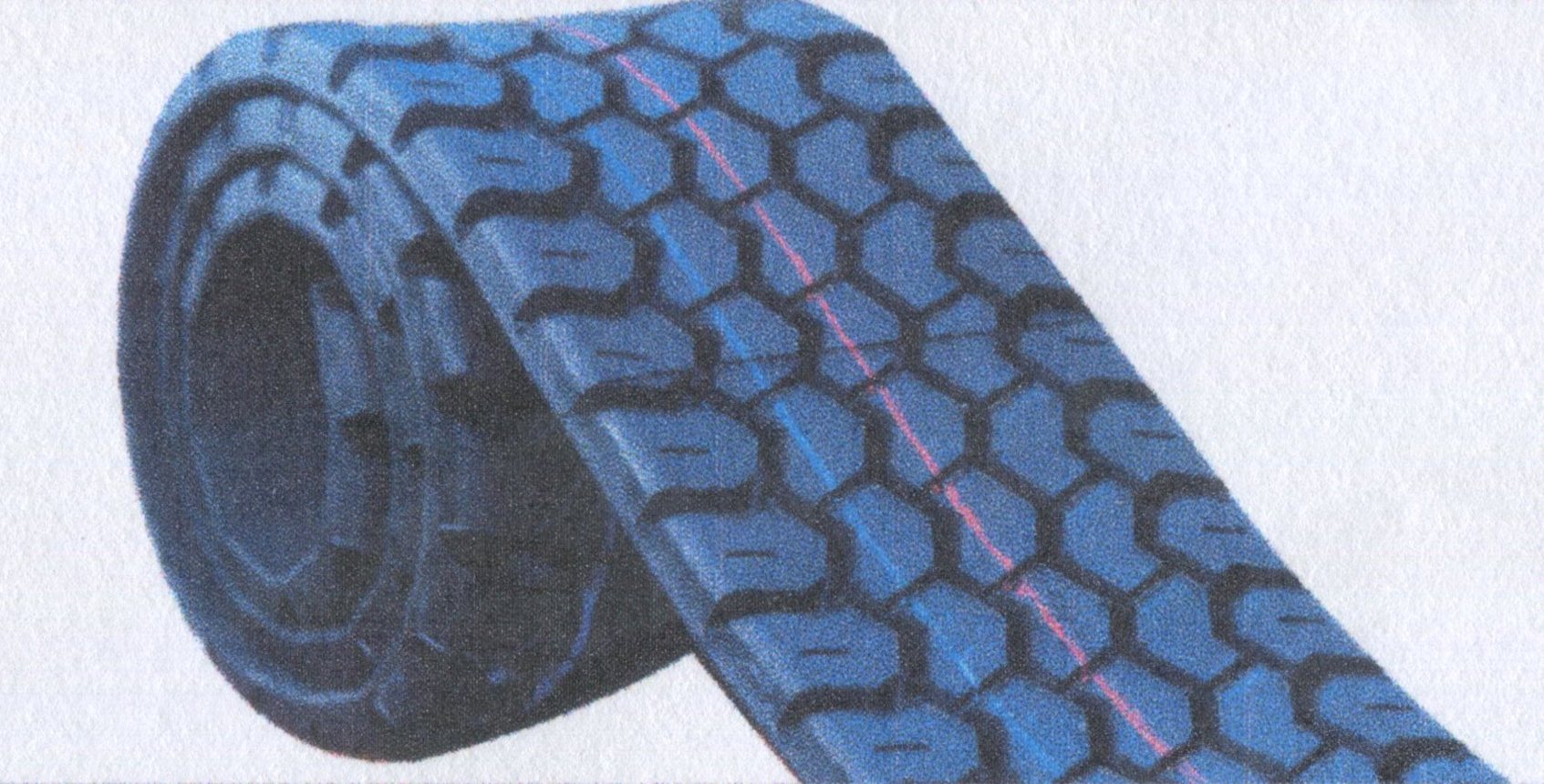

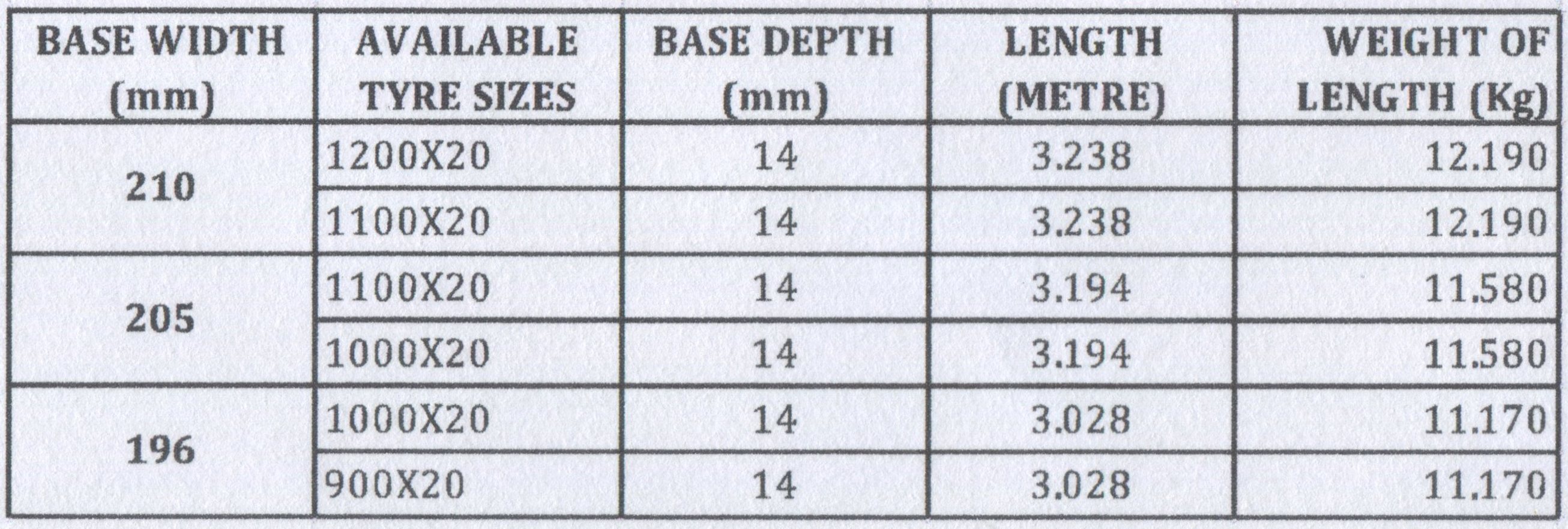

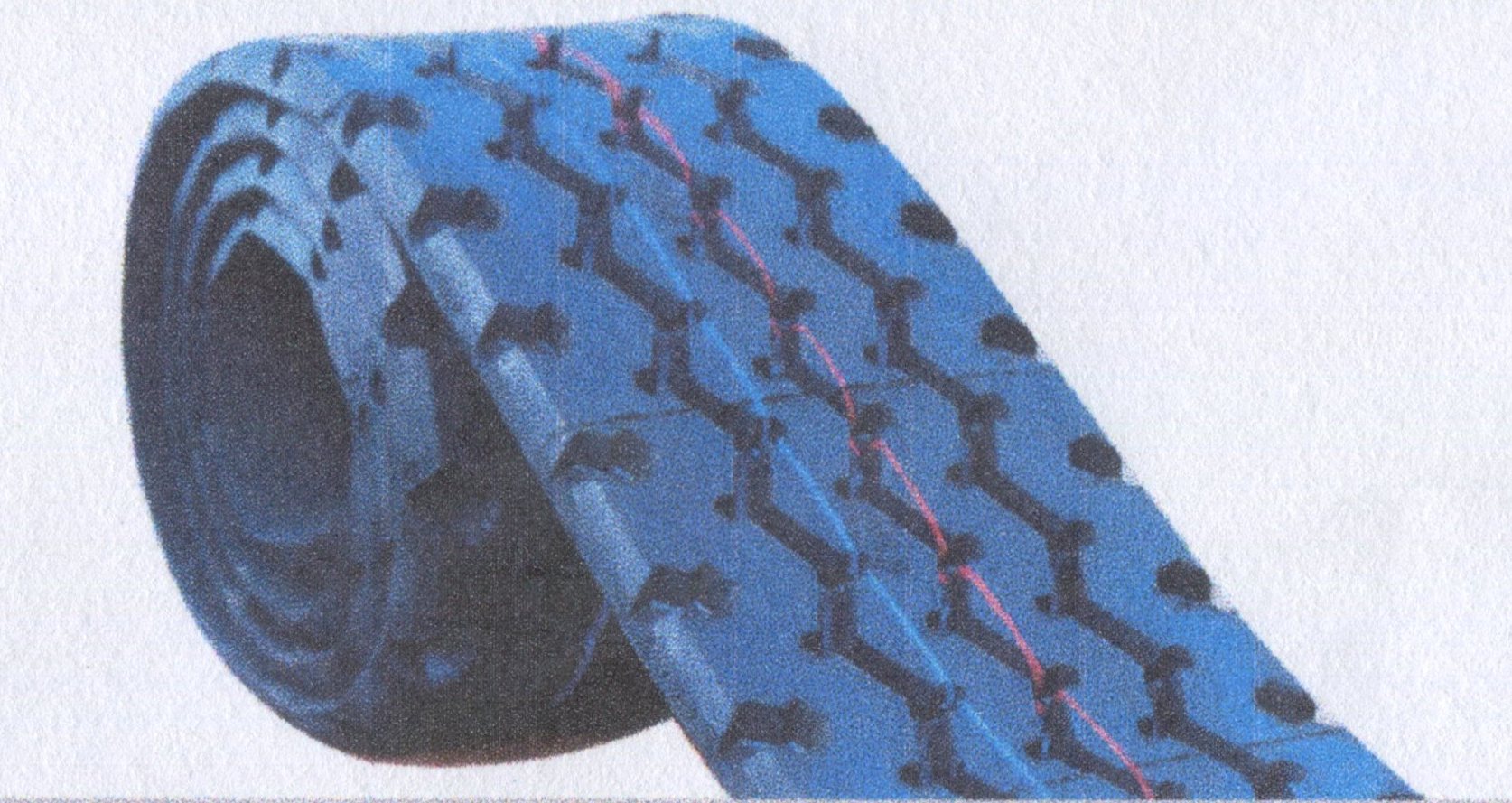

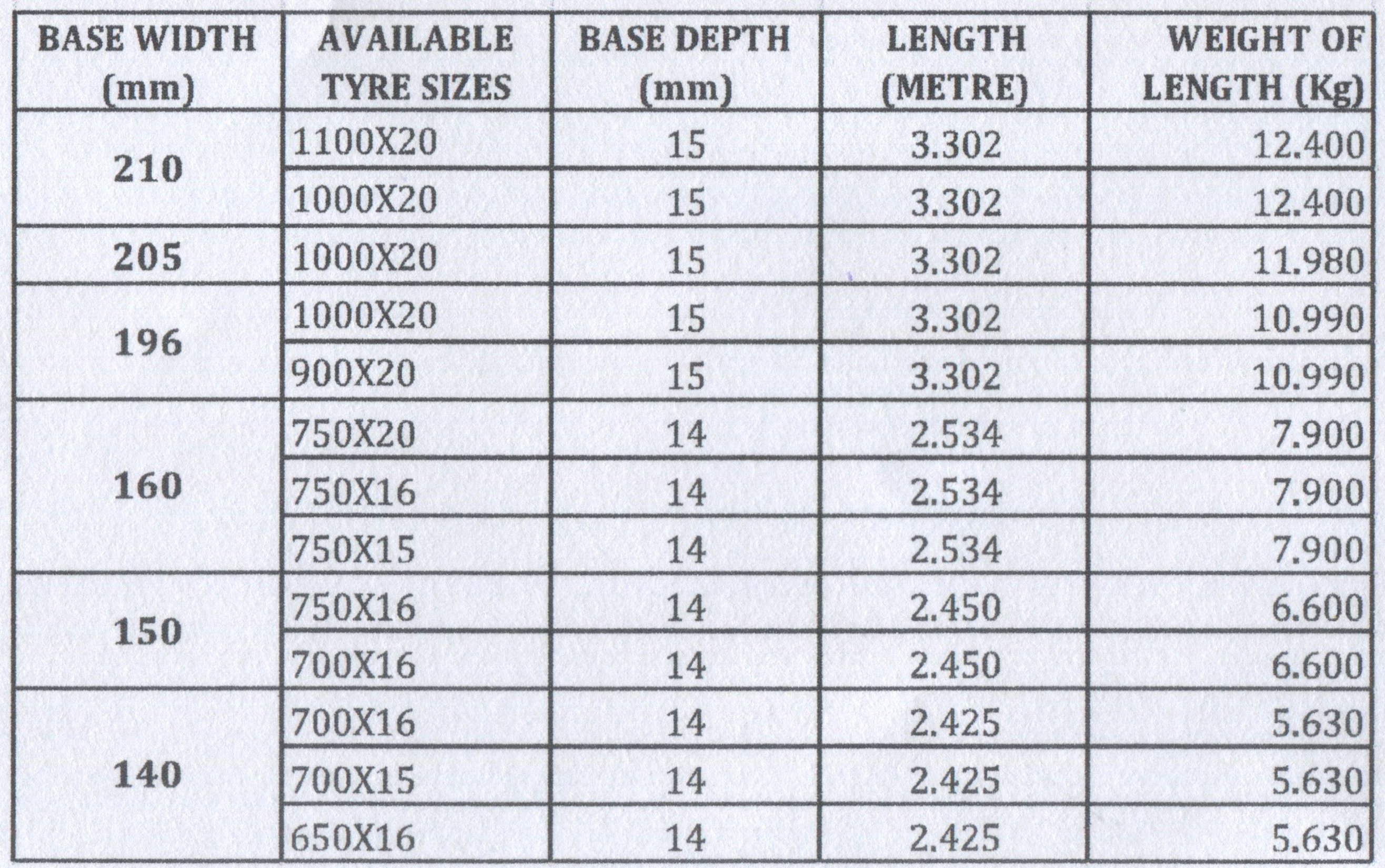

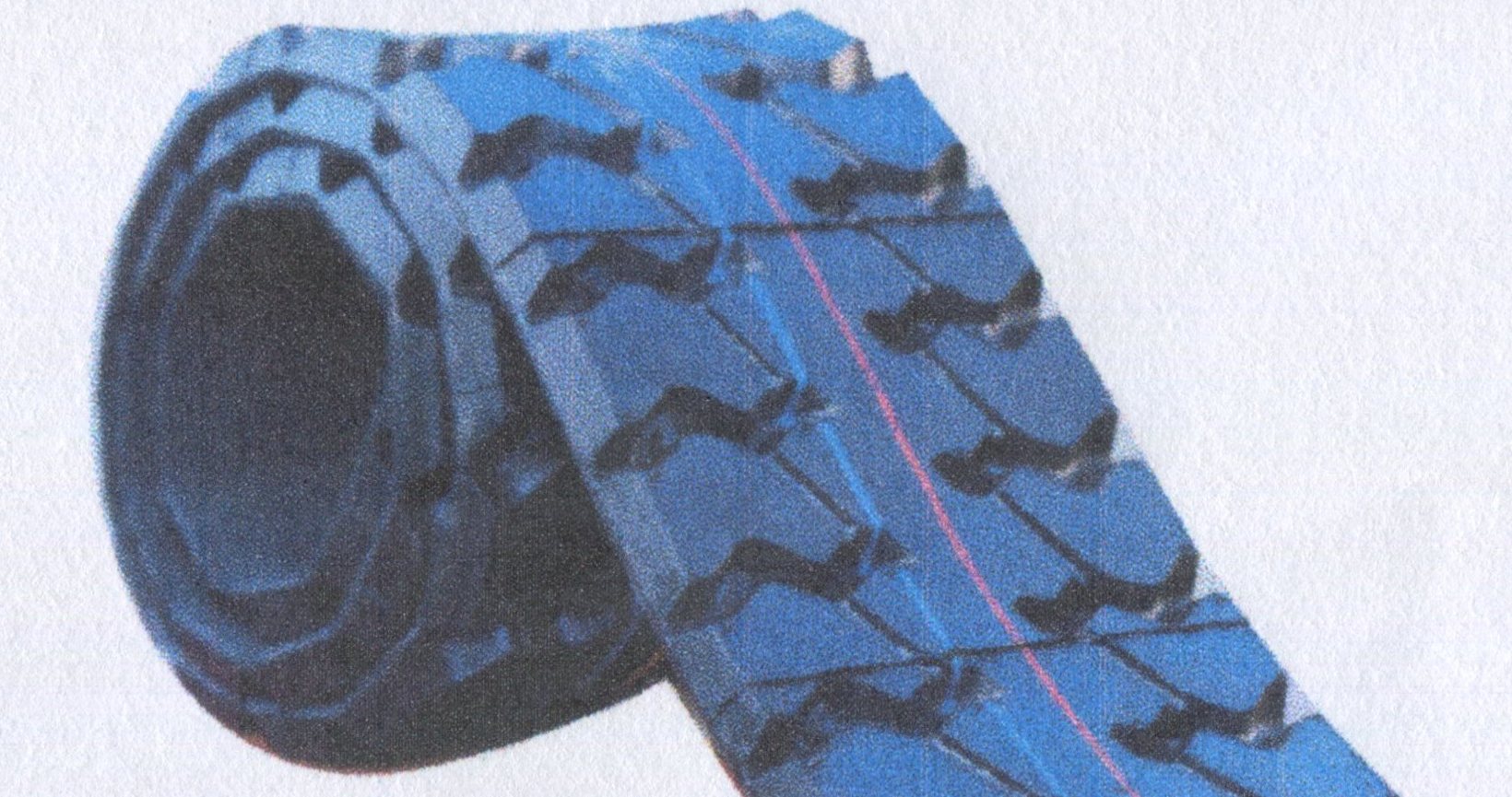

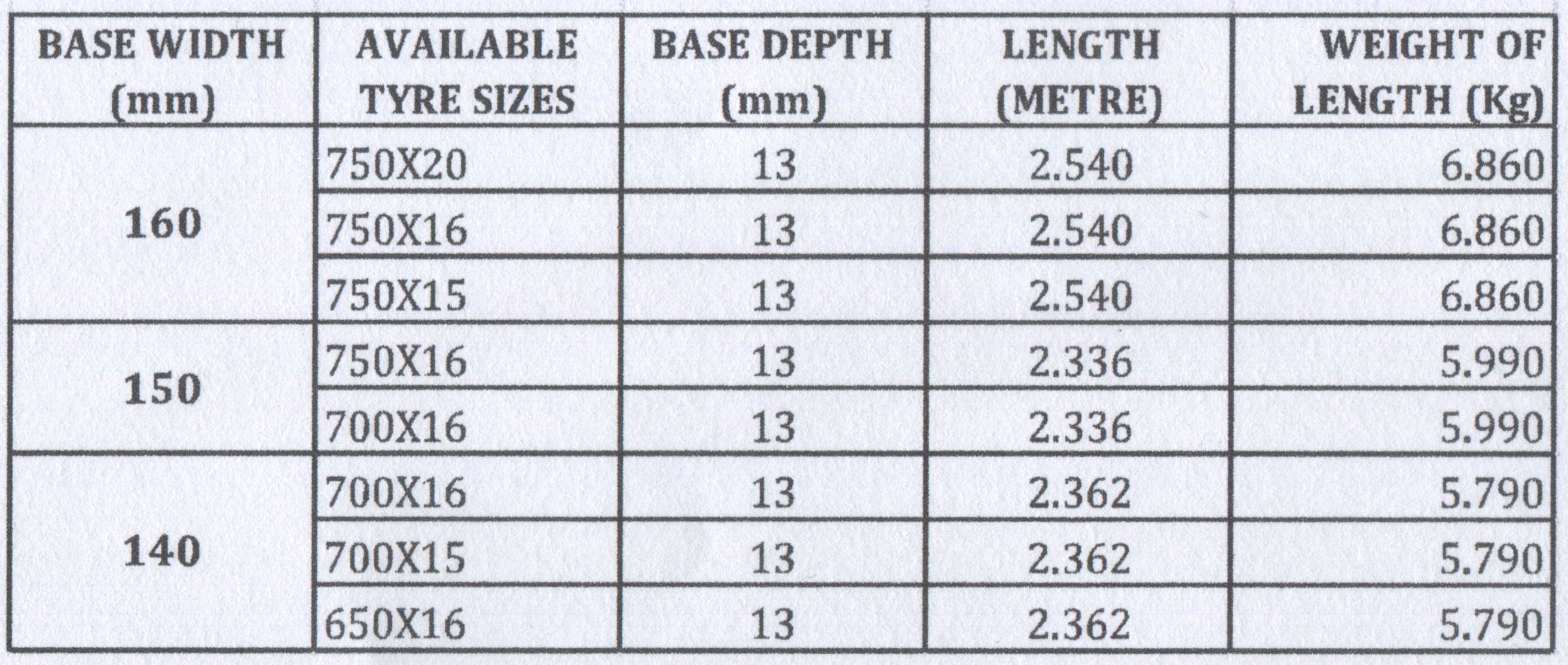

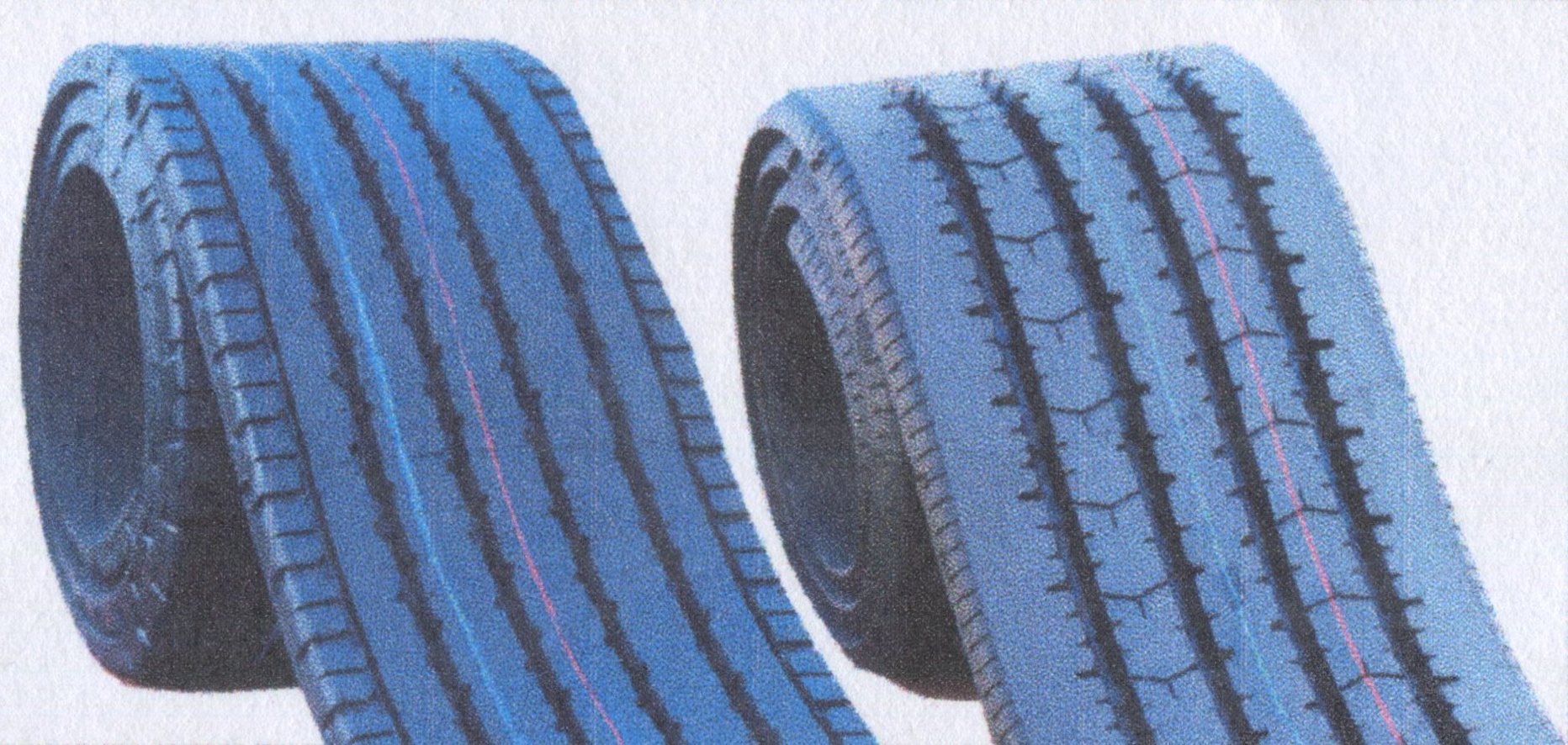

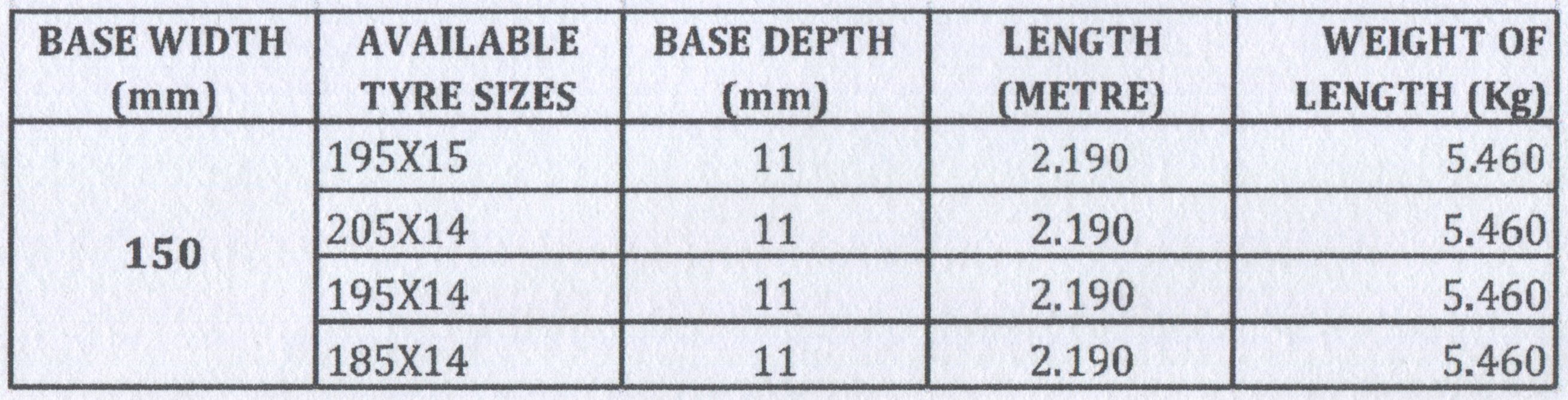

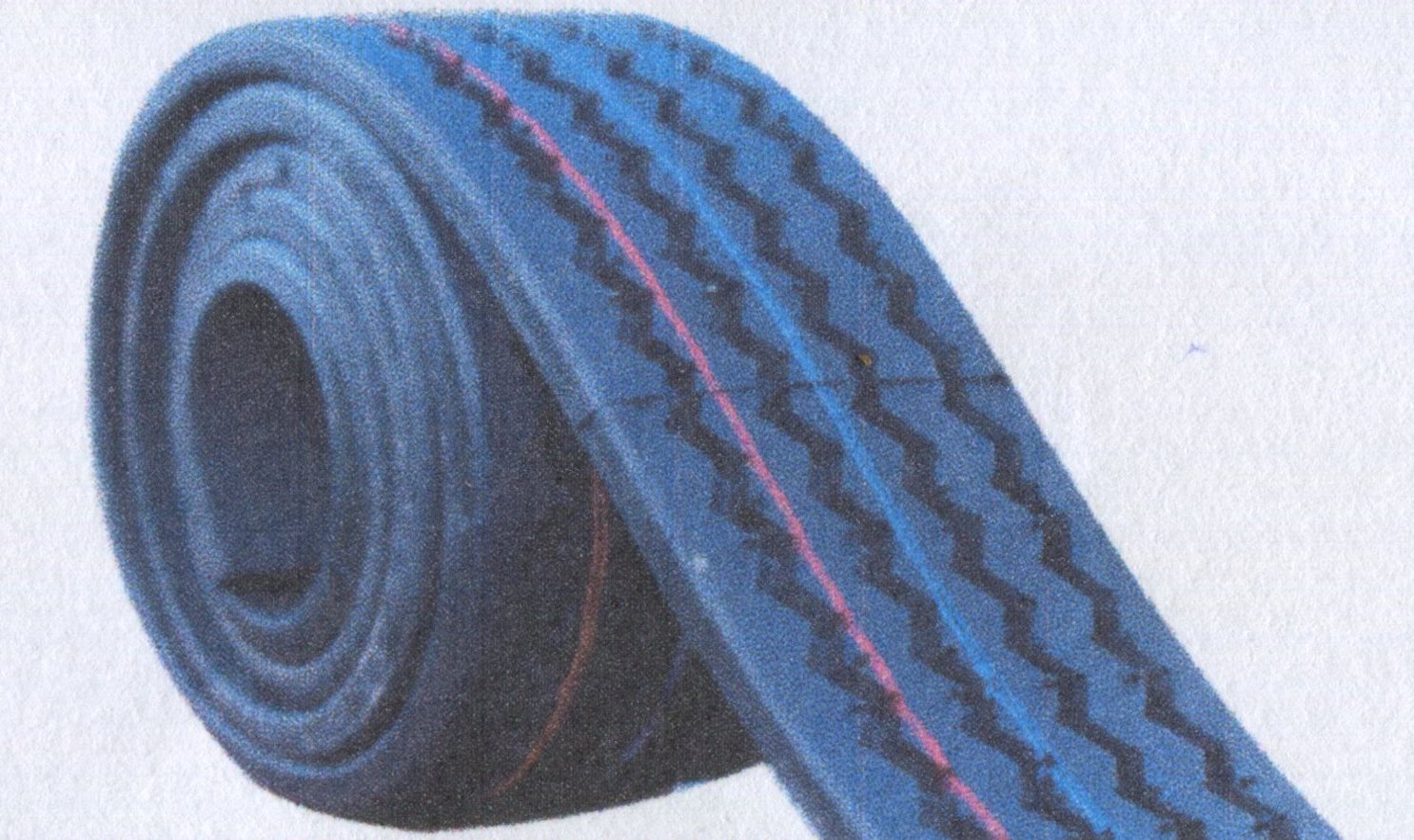

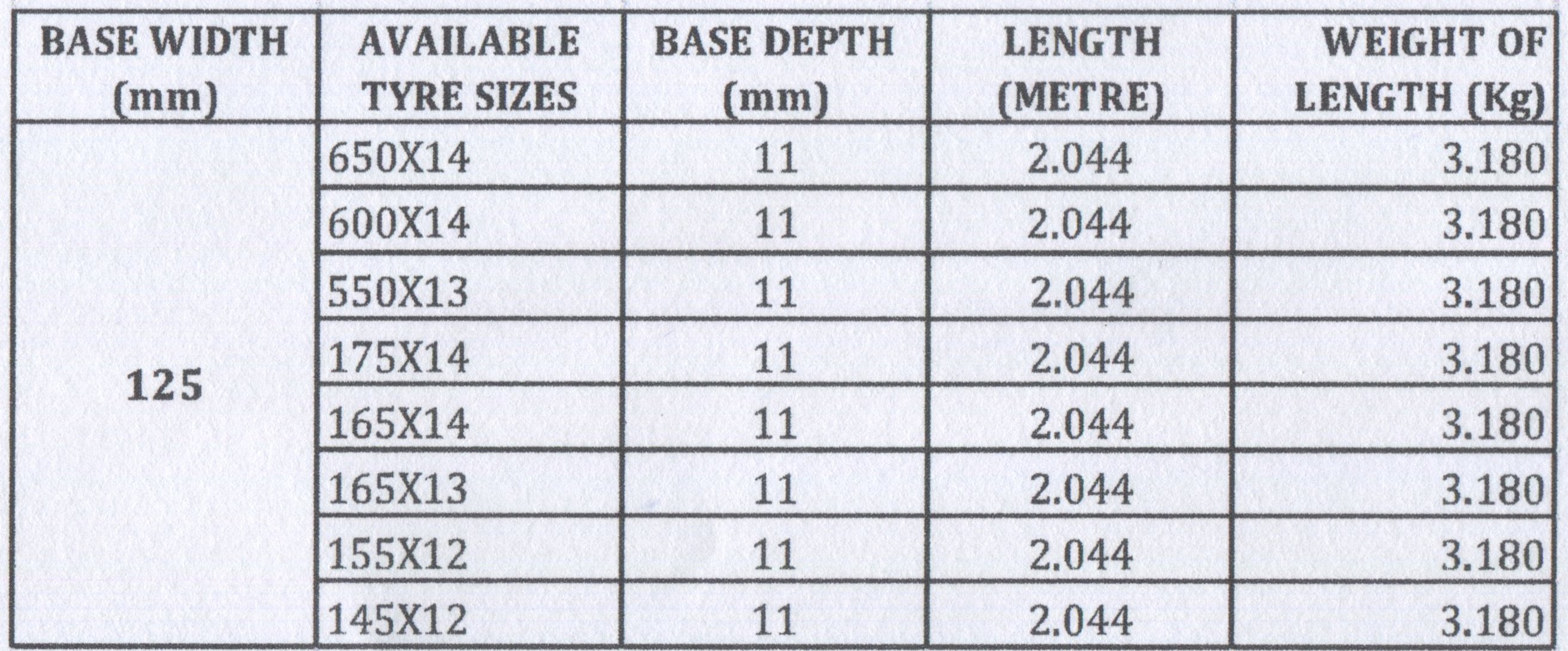

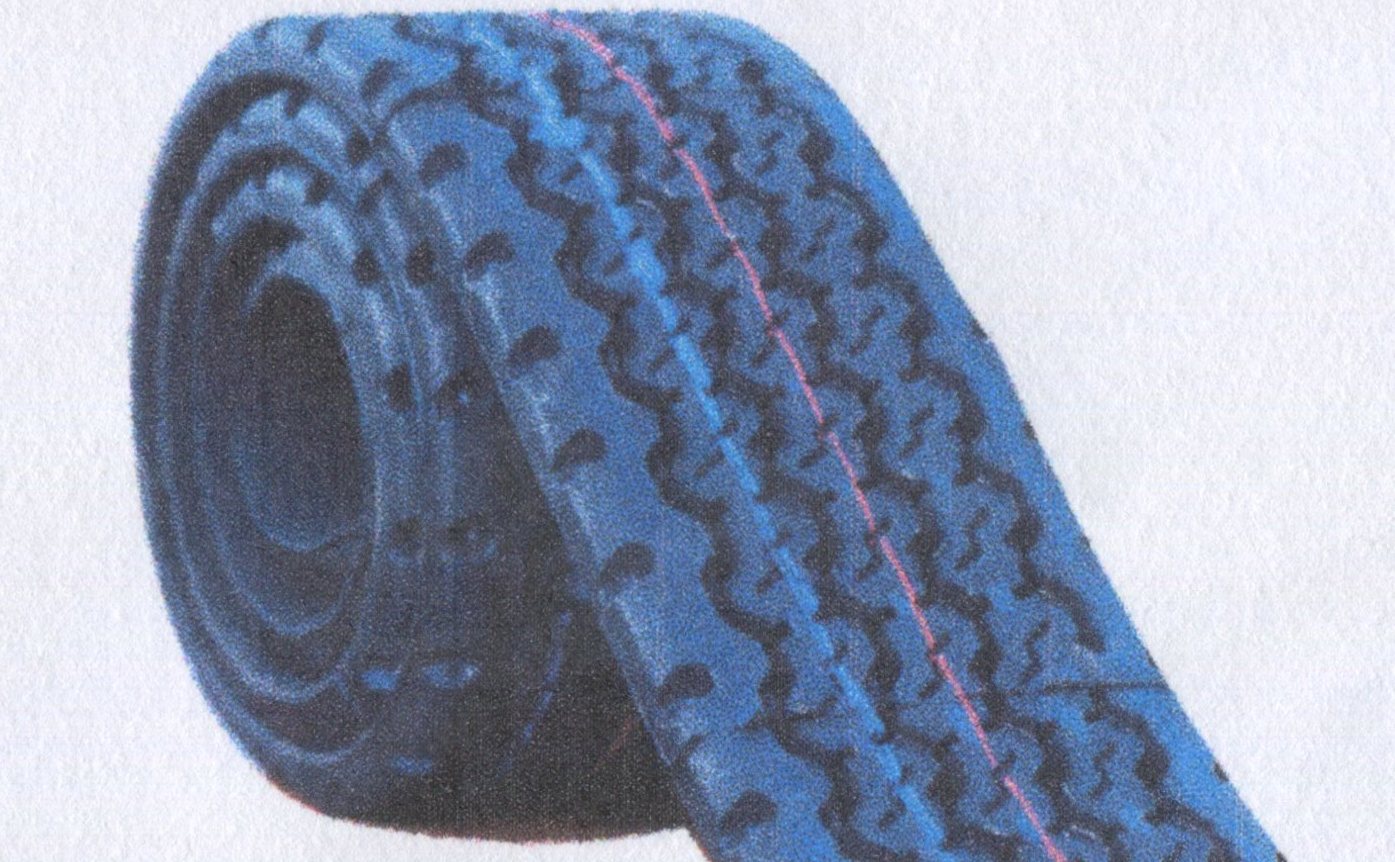

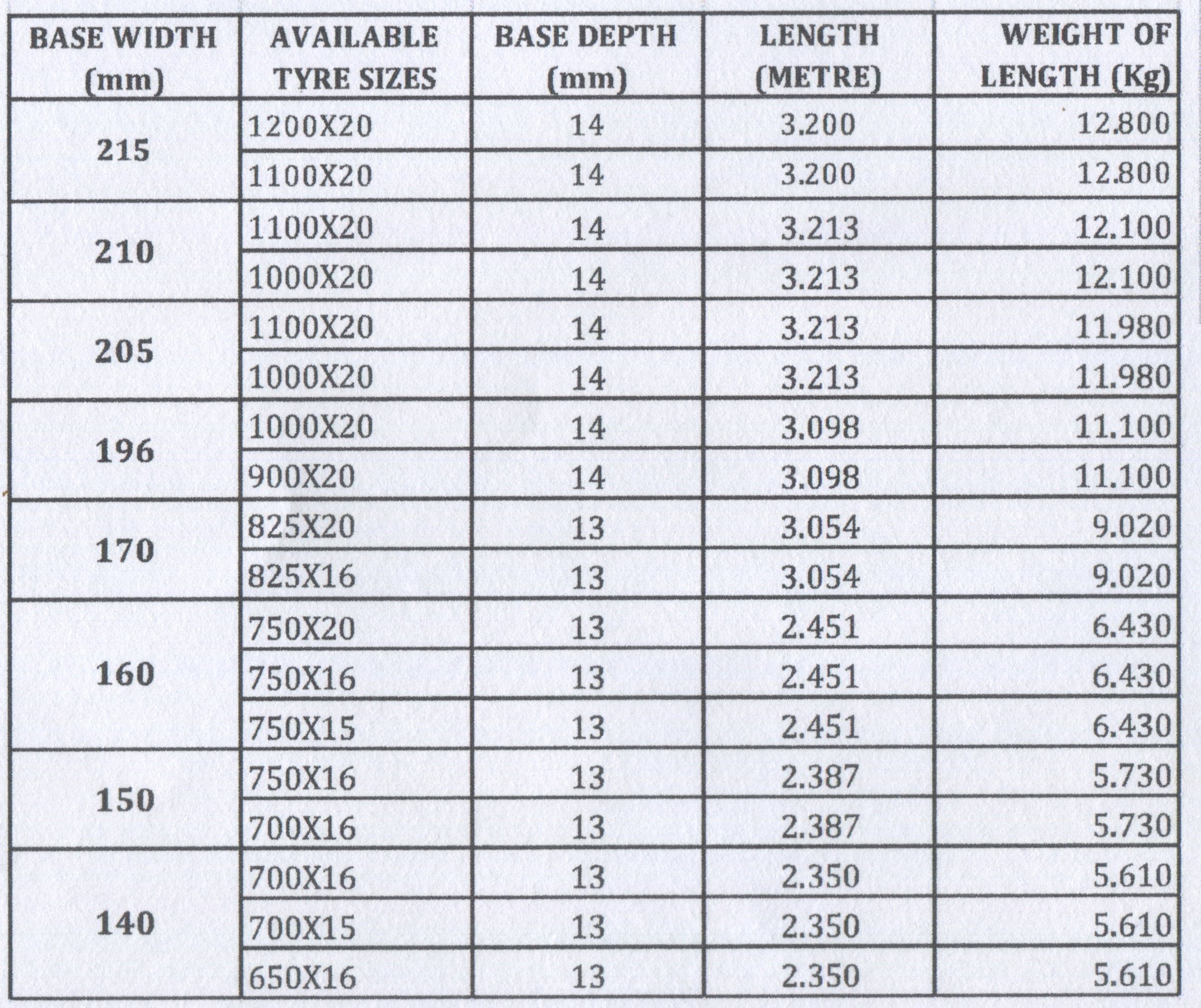

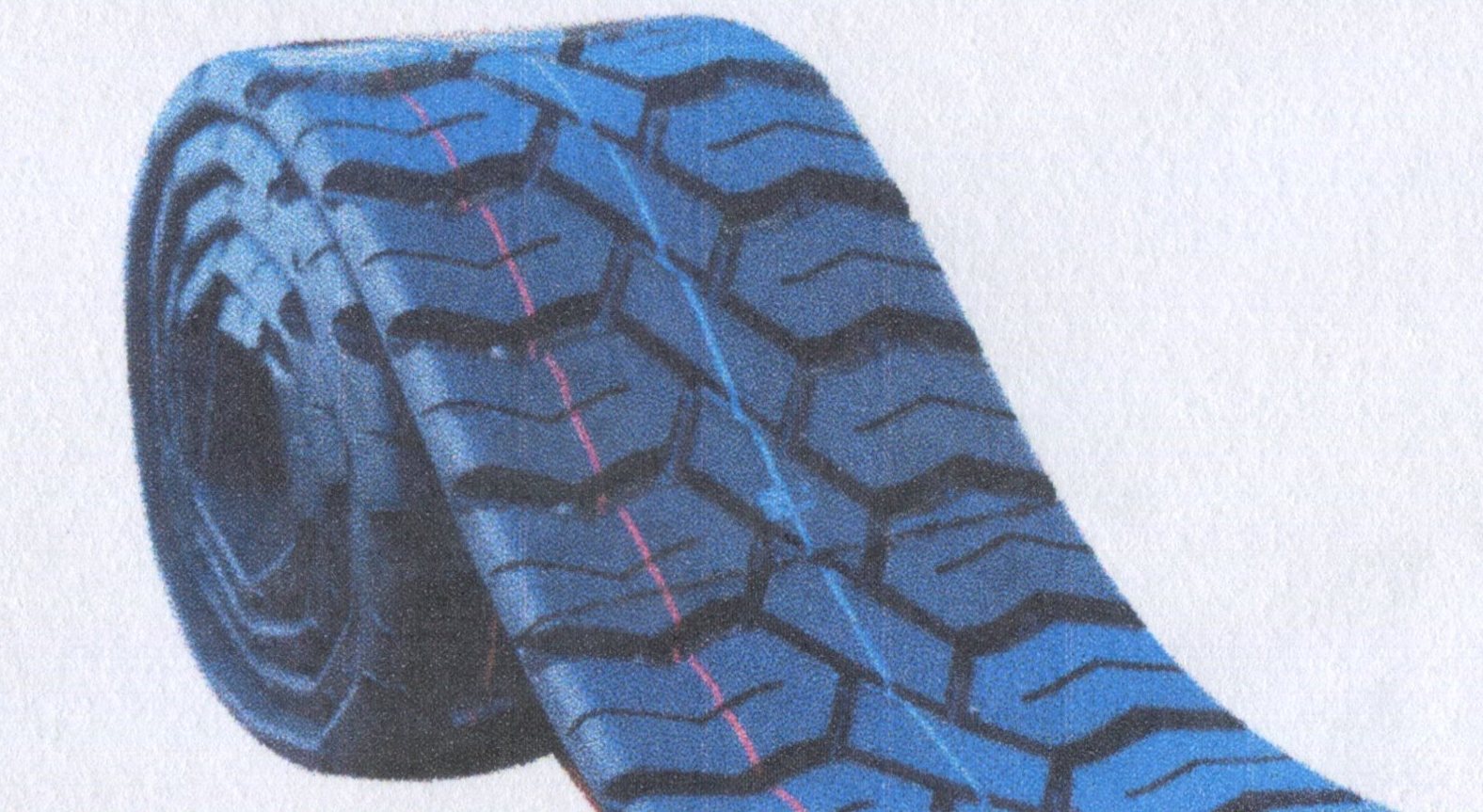

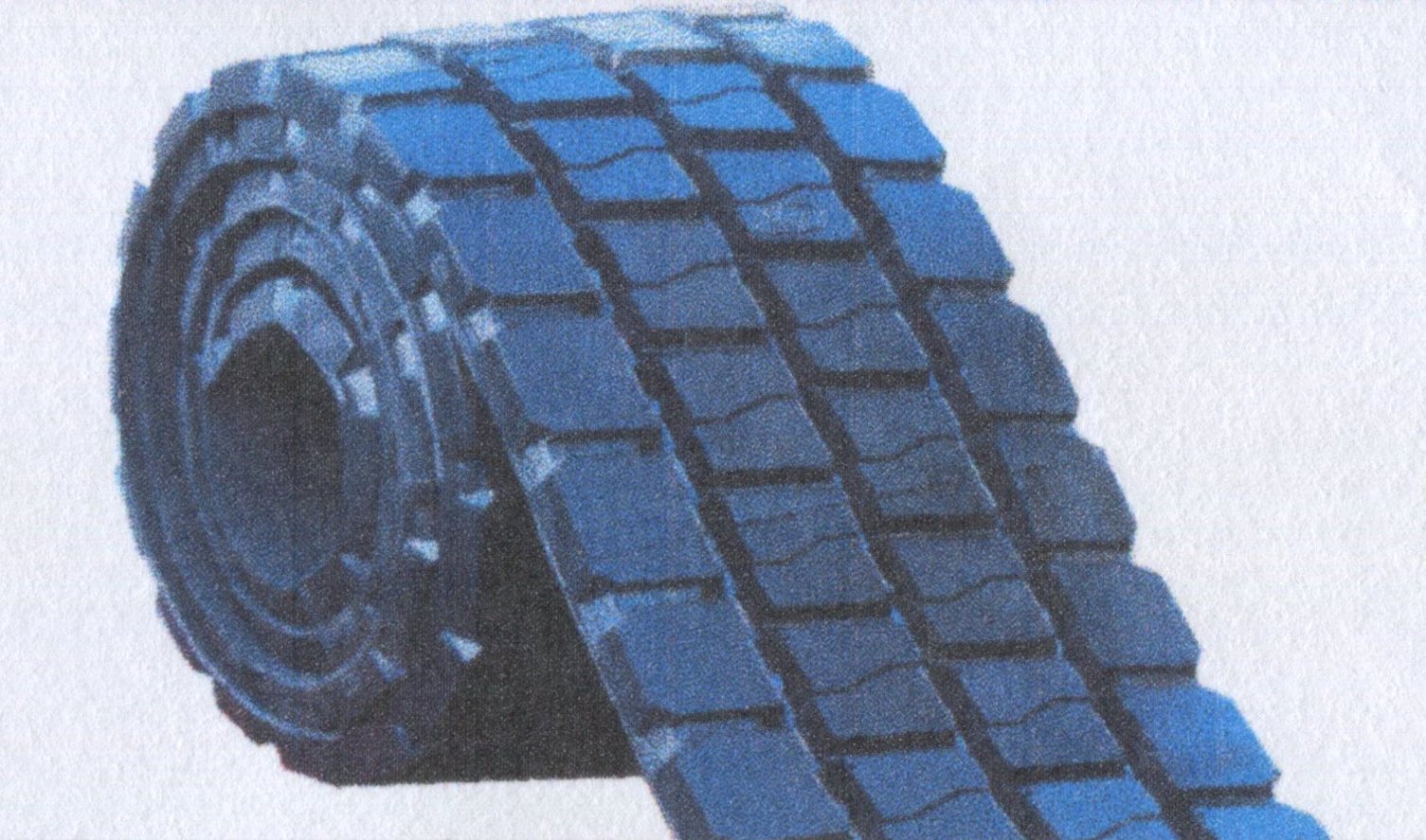

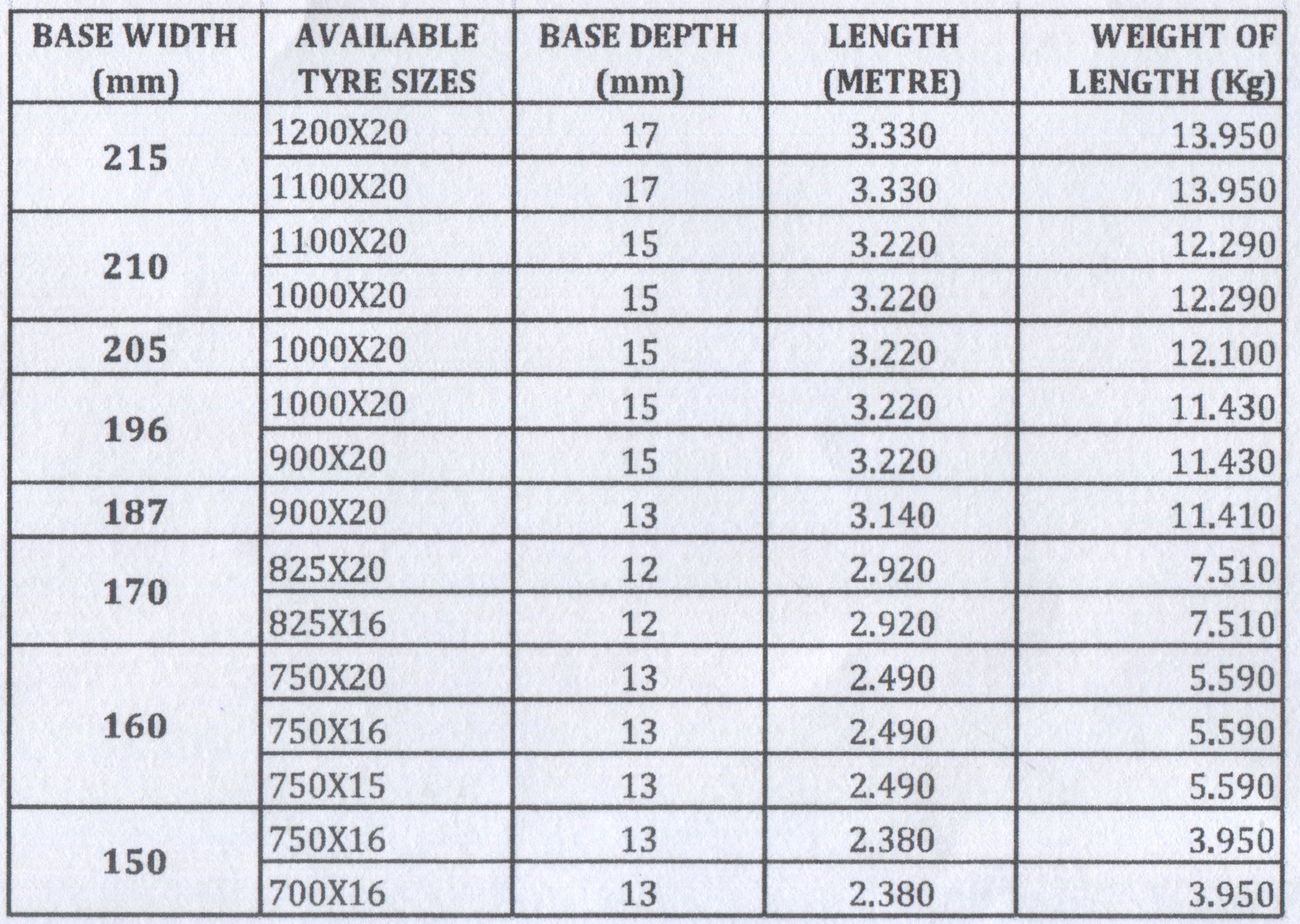

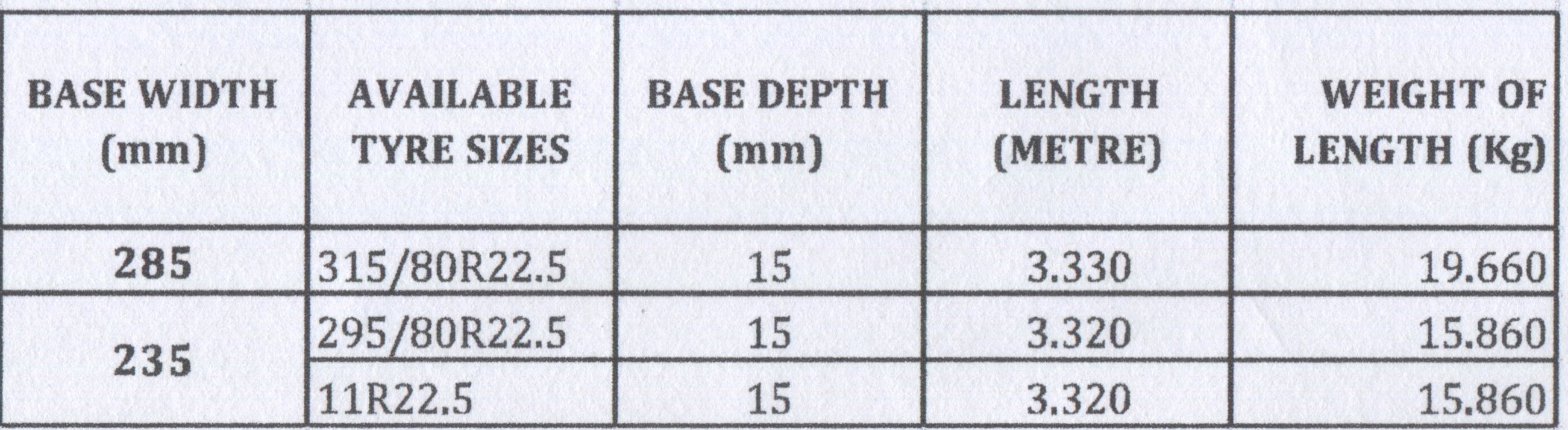

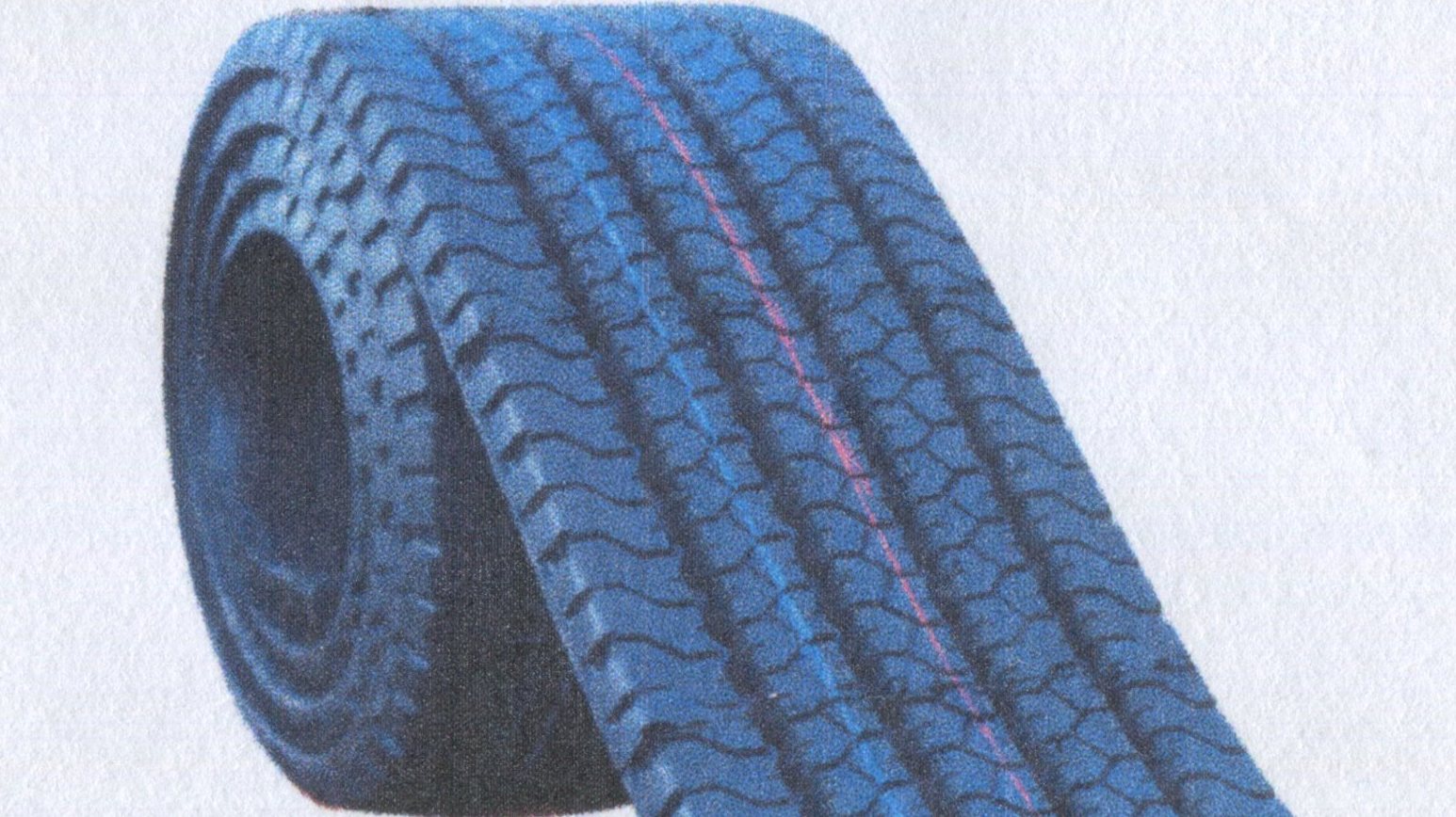

Pre-Cured Tread Belt
Available mould sizes:
|
400R8 |
500R12 |
600R12 |
600R14 |
550R13 |
650R14 |
|
650R15 |
700R15 |
750R15 |
700R16 |
750R16 |
825616 |
|
750R20 |
825R20 |
900R20 |
1000R20 |
1100R20 |
1200R20 |
Radial Pattern - RD
Super Trump Pattern – ST
Super Star – SS
Super Semi Lug – SL
Super Rib – For three wheeler - SR
Super High Miler – HM
Super Lug – LUG
Super One Lac – OL
Super Grip – SG
Curing Tube
The high quality of heat resistance curing tube were suitable for any pre-cured tyre retreading system. That’s a well-made formula of heat resistant compound. The curing tube reinforced the valve and long life construction especially careful.
Specification and size:
|
Item No. |
Suggested tyre size |
Valve |
1*20’ Loading |
|
F5451 |
155/165-13, 150-13, 155-13, 615-13, 165/70-13 |
TR1152 |
7,530 pcs |
|
F5452 |
175/185-14, 17514, 185/70-14, 185-14, 640-14 |
TR1152 |
7,530 pcs |
|
F5453 |
185/195-15, 185/60-14, 195/60-14,185/65-14 |
TR1152 |
7,530 pcs |
|
F5454 |
205-16, 205/70-16, 700-16, |
TR1152 |
6,530 pcs |
|
F5455 |
700/750-16, 750-16, 826-15, 205/75-17.5, 265/70 |
TR1152 |
6,530 pcs |
|
F5456 |
825-16, 825-15, 12-16.5, 37x16 |
TR1152 |
6,125 pcs |
|
F5457 |
900/1000-20, 900-20, 1000-20, 275/70-22.5, 295/70-22.5 |
TR1152 |
3,260 pcs |
|
F5458 |
1100-20, 1100-20 |
TR1152 |
3,260 pcs |
|
F5459 |
1200-20, 1200-20, 1300-20, 1400-20 |
TR1152 |
3,060 pcs |
|
F5460 |
315/80R-22.5, 315/80-22.5 |
TR1152 |
2,450 pcs |
|
F5461 |
1200-24, 1200-24 |
TR1152 |
2,450 pcs |

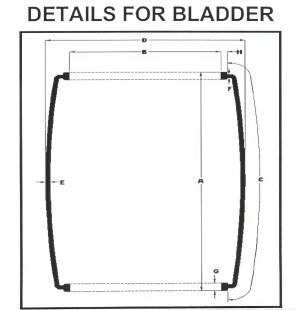

Curing Bladder
The curing bladder made of special formula of heat resistant compound. It was designed to be used in high technology curing press. Available in some sizes and shapes for car, light van and truck in tyre retreading process.
Specification and size:
|
Item No. |
Tyre size |
Overall heigh |
Foot I.D. |
Periph ery |
Outside Dia. |
Center gauge |
Neck gauge |
Bead width |
Bead height |
|
F5430 |
350/400-4 |
180 |
60 |
200 |
135 |
6 |
6 |
13 |
7 |
|
F5431 |
350-6 |
234.5 |
100 |
260 |
190 |
6 |
5.5 |
14.5 |
8 |
|
F5432 |
400-6 |
255 |
100 |
278 |
188 |
6 |
5.5 |
15.5 |
8 |
|
F5433 |
16*6.5”-8 |
265 |
150 |
283 |
236 |
7.5 |
7 |
15 |
8 |
|
F5434 |
350-8 |
190 |
146 |
215 |
230 |
7 |
6.5 |
15 |
8 |
|
F5435 |
600-9 |
373 |
165 |
400 |
285 |
8 |
7.5 |
18 |
9 |
|
F5436 |
450-10 |
300 |
195 |
314 |
280 |
6 |
7 |
16 |
10 |
|
F5437 |
700-12 |
385 |
218 |
425 |
365 |
10 |
9.5 |
24 |
13 |
|
F5438 |
530-12 |
278 |
208 |
290 |
300 |
7.5 |
7 |
18 |
10 |
|
F5439 |
650-14 |
374 |
253 |
407 |
395 |
9 |
8.5 |
21 |
10 |
|
F5440 |
750*16 825-16 |
468 |
271 |
486 |
410 |
8 |
10 |
23 |
12 |
|
F5441 |
250-17 |
178 |
335 |
210 |
425 |
6 |
5.5 |
14 |
6 |
|
F5442 |
750-16 825-16 |
595 |
377 |
615 |
587 |
9 |
11 |
25 |
12 |
|
F5443 |
900/1000/ 1100/1200 -20 |
555 |
385 |
750 |
815 |
9 |
11 |
25 |
13 |
