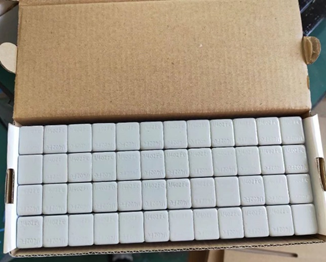

Adhesive wheel weight
Adhesive wheel weight - Lead free
The stick-on type of lead free adhesive wheel balance weight has more stronger adhesive backing to apply on the rim surface of wheel. Material was steel ( Fe ) with coating. Three sizes of weight are 7g (1/4oz), 14g (1/2oz) and 28g (1oz) will be suitable for heavy motorcycle, passenger car and truck of wheel.
F2711 7 grams ( 1/4 oz ) x 12 pieces / sheet
F2712 14 grams ( 1/2 oz ) x 6 pieces / sheet
F2713 28 grams ( 1 oz ) x 4 pieces / sheet
Specification:
Item | Description |
Material | Steel ( Fe ), lead free with coating. |
Adhesive tape
| Blue tape (B), White tape (W) and Blue plastic film (F). |
Surface treatment
| Chrome coated (C), Epoxy grey coating (E), Black coating (K) |
Electrostatic epoxy coating have two kinds of color – grey and black available.
Package:
Item No. | Description |
F2711 | 7g 12 pieces/sheet, 48 sheets/box, 6 boxes / carton |
F2712 | 14g 6 pieces/sheet, 36 sheets/box, 6 boxes / carton |
F2713 | 28g 4 pieces/sheet, 24 sheets/box, 6 boxes / carton |
Calhermit Enterprise Co., Ltd. 153 Hui Min Road, Nanzih, Kaohsiung 81153, Taiwan
e-mail: fingotw@gmail.com website: www.fingo.com.tw

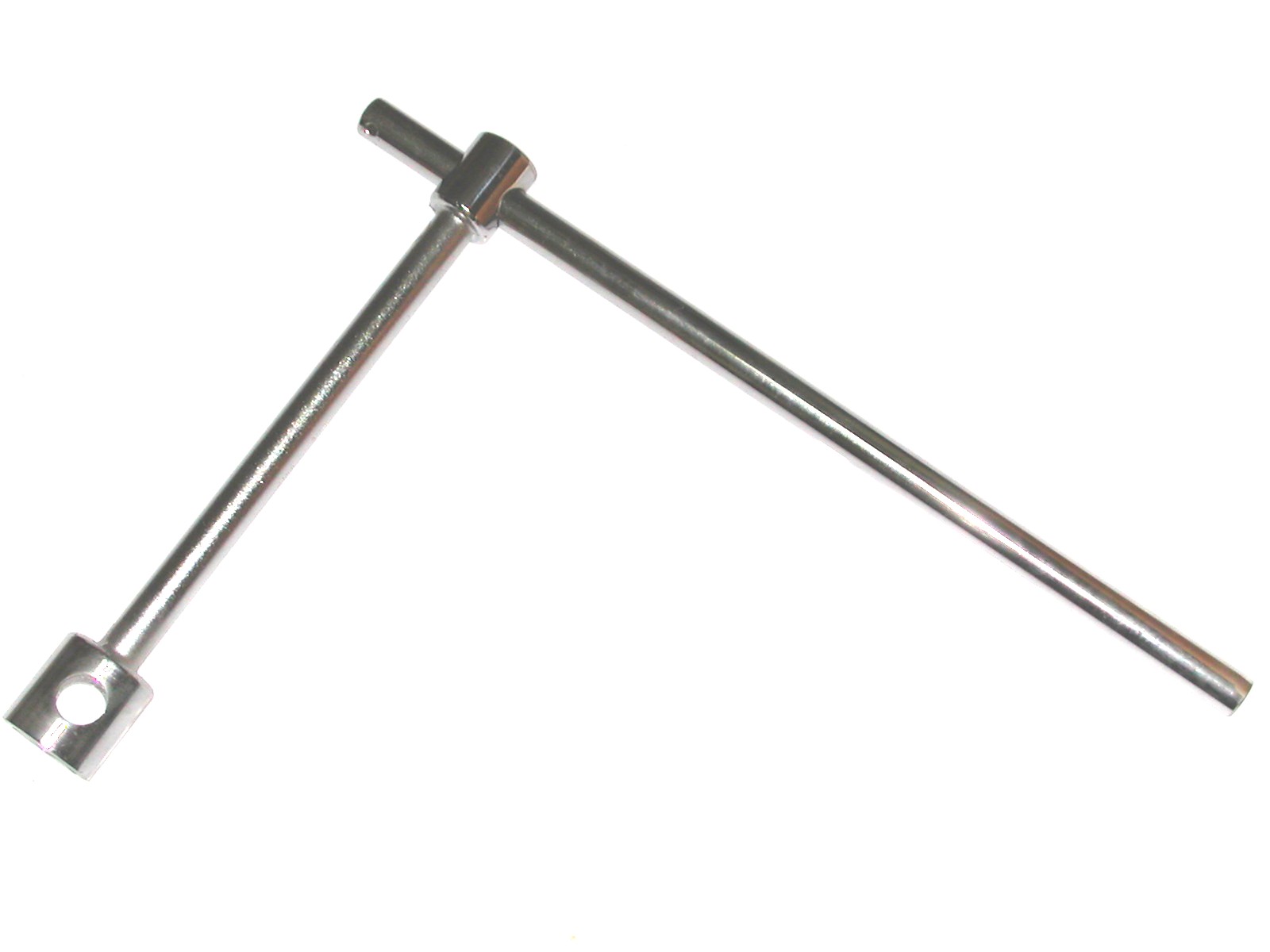

4 Way Lug Wrenc F314
Description:
Lug size: 5/8” x 14”, socket size: 17mm, 19mm, 21mm, 1/2” Dr,
Material: CRV 6140
Wrench surface : Sandblasting and chromium plating
Thickness value: HRC 43 – 46
Torque force test:
Test standard: CNS 14110/DIN ISO 1711-1

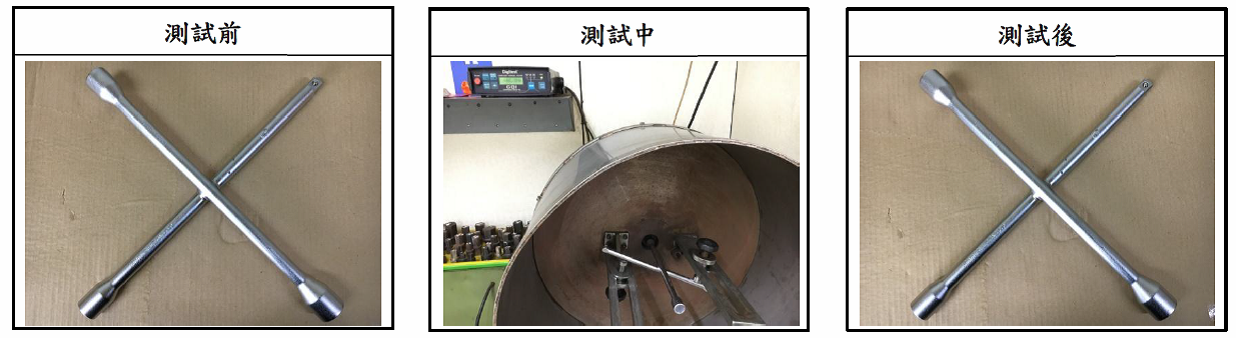

Test process:
| Before | Testing | After |
Test report:
| 試樣規格 | 標準值 (Nm) Standard | 測定值 (Nm) Thickness value | 判定 Conclusion |
| 17mm | 201 | 268.8 | 合格 OK |
| 19mm | 261 | 374 | 合格 OK |
| 21mm | 330 | 446.7 | 合格 OK |
| 1/2" | 390 | 519.8 | 合格 OK |

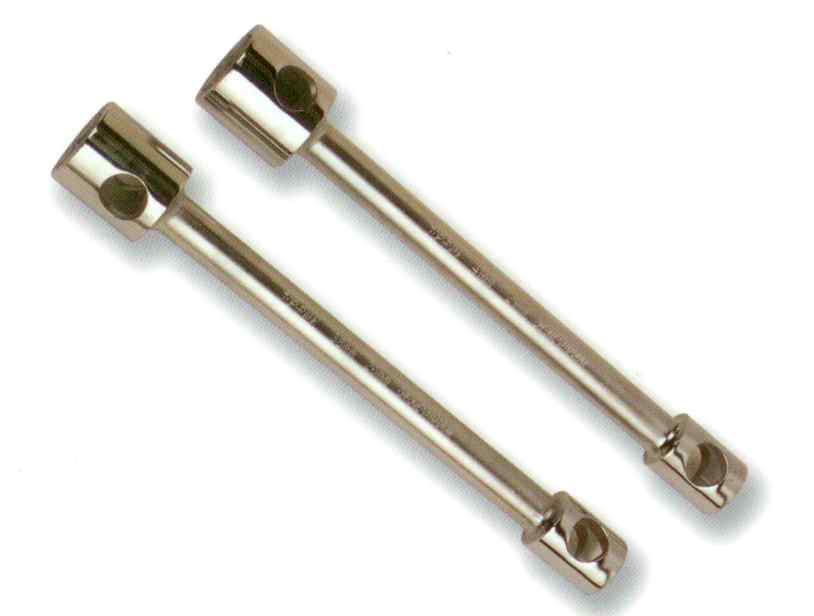

2 Way truck wrench A4172
Item no. A4172 / A4173
Most of truck used the 2 way wrench to disassemble the nut from wheel rim by hand for repair or change new tire. Also used the 2 way wrench to assemble the nut of wheel rim when tire repair finished or change new one.
It was convenience of tire repair in the shop or DIY kit. The socket of lever are available two sizes 41mm x 21mm and 33mm x 32mm which was meet most nut size of wheel rim for truck tires.
Description:

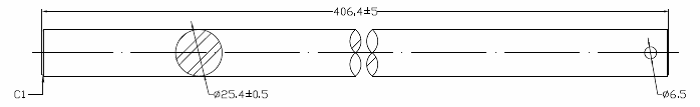

A4172: Lever arm Ф1”x16”, socket 41 x 21mm, Bar Ф1” x 16”.
A4173: Lever arm Ф1”x16”, socket 33 x 32mm, Bar Ф3/4” x 16”.
Material: S45C
Wrench surface: Sandblasting and chromium plating
Thickness value : Lever arm HRC 30 – 38, Bar HRC 10 – 18
Application: Suitable for release or fix the nut of truck tyres.
Wire brush with shank F430
The wire brush was used to polish the surface of metal or rubber with air grinder. Three types of brush are available for different application. The shake diameter 1/4” was meet the specification of air tools. The wire size 0.3mm was more stronger for polish of clean process requested.
 |
 |
 |
|
F4301 Cup type
|
F4302 Wheel type
|
F47303 Solid end type
|
Specification:
|
Item No. |
Description |
Outside Diam. |
Shank Diam. |
Wire size (mm) |
Trim length (mm) |
Face width |
|
F4301 |
Wire brush cup type with shank |
2" (5cm)
|
1/4" (6.35mm)
|
0.3 (0.2-0.5)
|
10
|
|
|
F4302 |
Wire brush wheel type with shank |
2" (5cm)
|
1/4" (6.35mm)
|
0.3 (0.2-0.5)
|
19
|
1/4" (6.35mm)
|
|
F4303 |
Wire brush solid end type with shank |
3/4" (1.9cm)
|
1/4" (6.35mm)
|
0.3 (0.2-0.5)
|
22
|
|
Application:
 |
1. The wire brush was so easy to clean the surface of corrosion for metal sheets or tire repairs etc. 2. The wheel type of wire brush was very suitable for tire puncture repair to polish clean nail hole area. 3. Wide arrange application included metal plate and car painting procedure. |

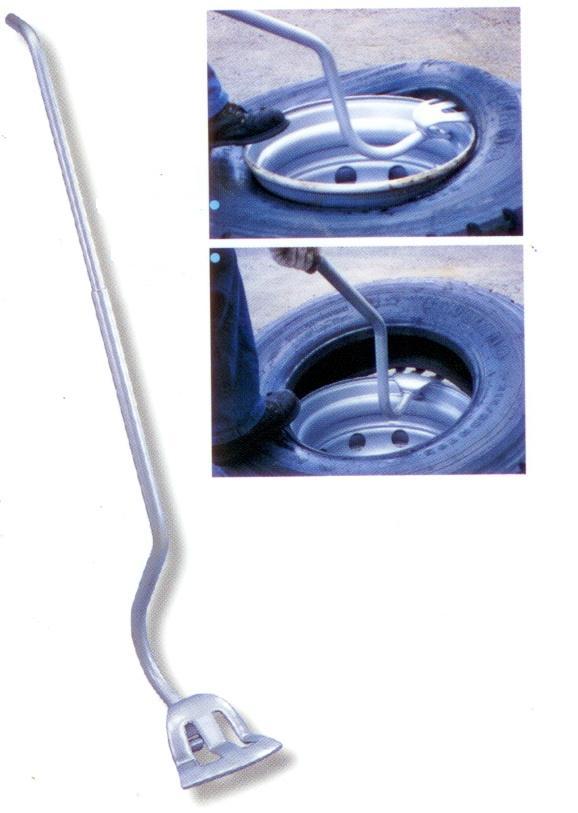

Tyre rim separation tool F453
Item no. F453
One of convenient tool to release the truck tire and steel wheel rim by hand when it run into damage or repair necessary. The professional hand tool was designed a special curve to meet the motion of the tire release procedure conveniently.
Features:
The tire separation tool was light and handy to make effort-saving for truck tube tire or tubeless tire. It was suitable for tire size 295/R22.2 Tto 315/R22.5.
