Pneumatic tyre buffer A4254
The pneumatic tyre buffer was very suitable for tyre working of rough rubber surface, tyre refurbishing, retreaded procedure and low speed grinding application.
This pneumatic tyre buffer was including two gears to reduce the grinding speed to maximum 2,500 R.P.M. which will protect the rubber scorch necessary.
Specification:
Max. speed | 2,500 R.P.M. | Length | 20 cm |
Chuck size | 6 mm | Weight | 0.95 kgs |
Air inlet thread | 1/4 inch | Package per carton | 20 pieces |
Inlet pressure | 90 psi | Volume of carton | 0.03 cbm |
Air impact wrench F3841
Model no. F3841
The impact wrench supply more power torque and light weight which was very suitable for truck tire to remove screws and nuts.
Specifications:
|
Socket size |
1 inch square |
Ave. air consumption |
0.45 m3/min |
|
Mechanism |
Pin less |
Bolt capacity |
230 mm |
|
Free speed |
3,500 R.P.M. |
Length |
630 mm |
|
Max. torque |
3,800 N/M |
Weight |
17.1 kgs |
|
Air inlet |
1/2 inch |
Anvil |
8 inch |
Packing: 1 pc/18.6 kgs/ 0.031 cbm
Professional A quality tire repair products.
Pneumatic tools
Air impact wrench

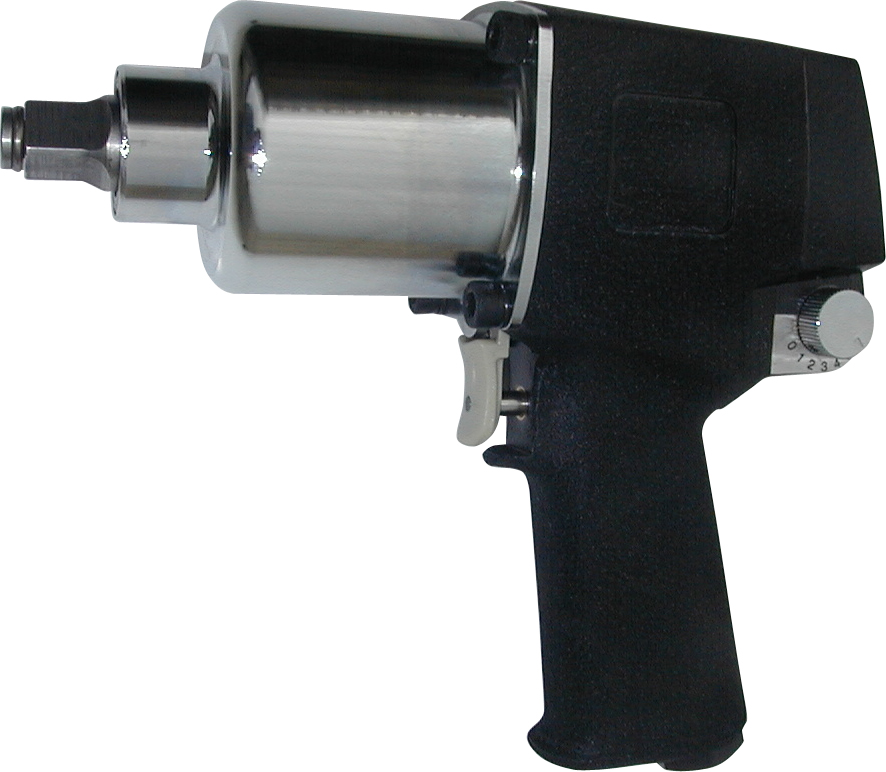

F380 1/2” Air impact wrench
Free speed: 7,000 rpm
Mechanism: Twin hammer
Max. torque: 570 NM
Air consumption: 0.15 m3/min
Air inlet: 1/4”
Weight: 2.70 kgs
Quick release and locking structure.
Stable impact for long time running.-----------------------------------------------------------------------------------------------------

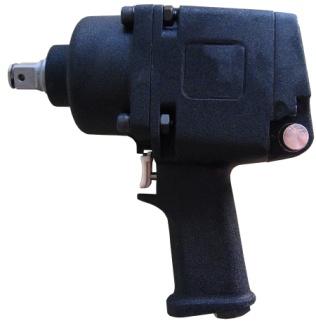

F3830 F3831
Socket: 3/4” Socket: 1”
Mechanism: Twin hammer Free speed: 5,000 rpm
Air consumption: 0.36 m3/min Max. torque: 1,356 NM
Weight: 5.4 kgs Air inlet: 3/8”
Great torque, high balance, heavy duty design.
Used in replacing truck tire, gear, engine and so on.--------------------------------------------------------------------------------------------------------------------
F253 Air impact wrench
Square head: 1/2”
Speed: 6,000 rpm
Torque: 570 NM
Air inlet: 1/4”
Length: 170 mm
Weight: 1.9 kgs--------------------------------------------------------------------------------------------------------------------

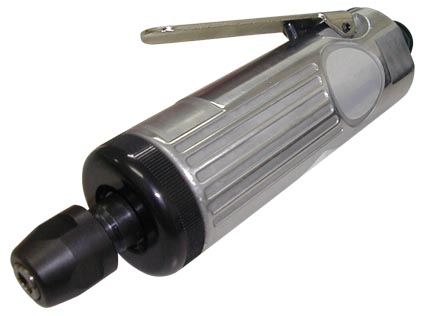

A4253 Air die grinder
Chuck size: 6 mm
Free speed: 22,000 pcs
Air consumption: 0.113 m3/min
Air inlet: 1/4”
Length: 168 mm
Weight: 0.54 kgs
Front exhaust to remove dust.----------------------------------------------------------------------------------------------------------

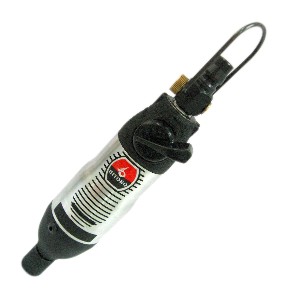

F252 Air screwdriver
Outer screw: 5.5 mm
Speed: 8,000 rpm
Torque: 40 NM
Weight: 0.75 kgs
Low noise, Quick reverse, F/R switch.-------------------------------------------------------------------------------------------------------

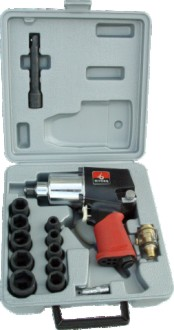

A4250 1/2” Air impact wrench kit with sockets
----------------------------------------------------------------------------------------------------
F374 Air die grinder kit
Die grinder kit F374
Model no. F374
The compact kit of Die grinder was including 3mm amd 6mm shank stones. This kit was suitable for tire repair scuffing of edge crack and grinding etc.
Specifications:
|
Chuck size |
6 mm |
Ave. air consumption |
0.113 m3/min |
|
Free speed |
20,000 R.P.M. |
Inlet pressure |
90 psi |
|
Hose size |
3/8 inch |
Length |
168 mm |
|
Air inlet |
1/4 inch |
Weight |
1.10 kgs |
|
Noise level |
90 dBA |
Packing |
10 pcs/13 kgs/ 0.003 cbm |
Accessories:
5 pcs Shank stone 6mm, 5 pcs Shank stone 3mm, 2 pcs Hand wrench, 1 pc Nipple,
1 pc Collet chuck 3mm.

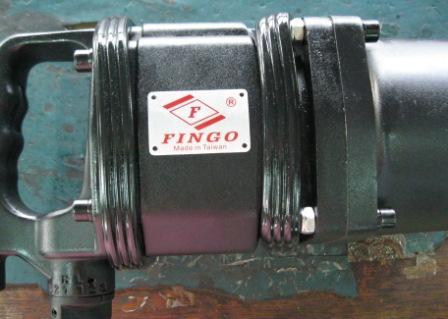

Air impact wrench F3842
Model no. F3842
The impact wrench supply row speed with more power torque and light weight which was very suitable for truck tire to remove screws and nuts.
Specifications:
|
Socket size |
1 inch square |
Ave. air consumption |
0.50 m3/min |
|
Mechanism |
Twin-Hammer |
Bolt capacity |
230 mm |
|
Free speed |
2,600 R.P.M. |
Length |
630 mm |
|
Max. torque |
4,000 N/M |
Weight |
17 kgs |
|
Air inlet |
1/2 inch |
Anvil |
6 inch |
Packing: 1 pc/18.0 kgs/ 0.030 cbm
Professional A quality tire repair products.
Air impact wrench F3843
Model no. F3843
The impact wrench supply row speed with more power torque and light weight which was very suitable for truck tire to remove screws and nuts.Specifications:
|
Socket size |
1-1/2 inch square |
Ave. air consumption |
0.50 m3/min |
|
Mechanism |
Twin-Hammer |
Vibrated value |
11 m/s2 |
|
Free speed |
2,600 R.P.M. |
Length |
457 mm |
|
Max. torque |
4,500 N/M |
Weight |
15.8 kgs |
|
Air inlet |
1/2 inch |
Value noise |
97 dB |
Packing: 1 pc/17.50 kgs/ 0.030 cbm
Professional A quality tire repair products.

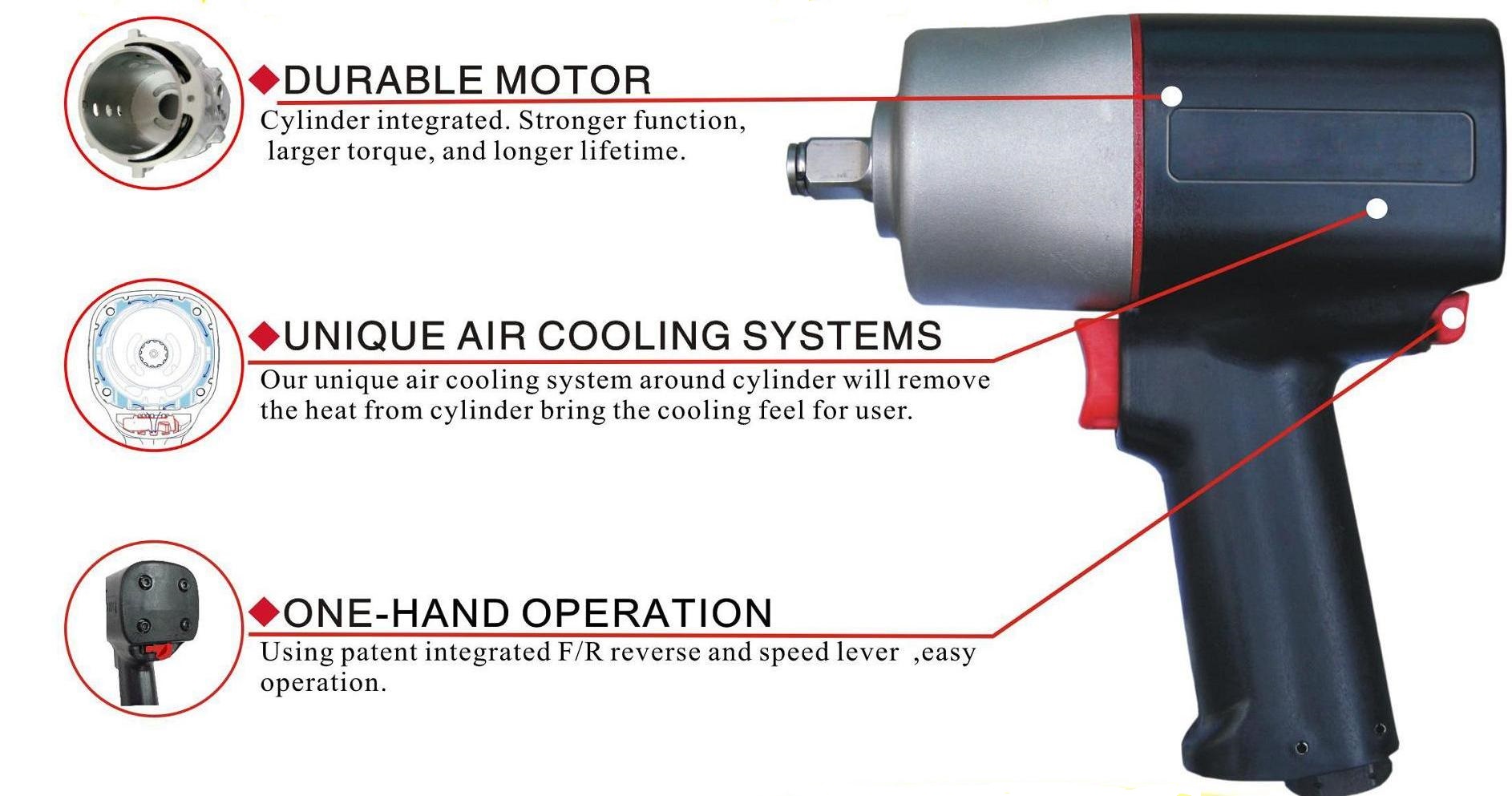

Composite impact wrench F254
1/2 inch Pneumatic impact wrench
You always meet the best - Professional A quality of tire repair service.
Model no. F254L
The most powerful composite pneumatic impact wrench with light weight only 1.9 kgs and extension anvil 2 inch for tire service maintenance jobs.
Specifications:
|
Socket size |
1/2 inch square |
Ave. air consumption |
0.15 m3/min |
|
Mechanism |
Twin-hammer |
Noise level |
92 dBA |
|
Free speed |
6,800 R.P.M. |
Length / Weight |
190 mm / 1.9 kgs |
|
Max. torque |
1,085 N/M |
Extension anvil |
2 inch |
|
Air inlet |
1/4 inch |
Packing |
5 pcs/12 kgs/ 0.02 cbm |
Green design:
1. Energy saving: Outstanding performance with lower air consumption.
2. Environment protection: 99% recyclables, non-toxic materials.
3. Easy drive: Lighter weight, one handed operation, bottom exhaust.
