Tyre retreaded radial patches
The high quality tyre retreaded cured radial patch are suitable for puncture repair of radial tyre in retreaded process. The high tension structure tyre fiber cord make use of the patent lay-out which reinforced the tyre body to against the reverse rebound from the roadway.
Specification:
Item No. Description Item No. Description
|
F410 |
R10 55 x 75mm 2 Ply |
F435 |
R35 125 x 175mm 3 Ply |
|
F412 |
R12 75 x 115mm 2 Ply |
F440 |
R40 100 x 190mm 3 Ply |
|
F414 |
R14 80 x 130mm 2 Ply |
F440L |
R40L 100 x 230mm 3 Ply |
|
F420 |
R20 80 x 125mm 3 Ply |
F442 |
R42 130 x 260mm 4 Ply |
|
F422 |
R22 75 x 175mm 2 Ply |
F442L |
R42L 130 x 280mm 4 Ply |
|
F423 |
R23 80 x 170mm 2 Ply |
F444 |
R44 130 x 335mm 4 Ply |
|
F424 |
R24 75 x 220mm 2 Ply |
F445 |
R45 175 x 225mm 4 Ply |
|
F425 |
R25 110 x 125mm 3 Ply |
F446 |
R46 180 x 440mm 4 Ply |
|
F426 |
R26 75 x 260mm 3 Ply |
F452 |
R52 240 x 580mm 4 Ply |
|
F426L |
R26L 95 x 290mm 3 Ply |
F454 |
R54 260 x 500mm 4 Ply |
|
F428 |
R28 75 x 330mm 3 Ply |
F462 |
R62 300 x 600mm 4 Ply |
Feature:
1. The patent lay-out design of fiber tyre cord reinforced the tyre body repair area.
2. Radial tyre patches was wide range from 55 x 75mm to 300 x 600mm and fiber
tyre cord have two ply to four ply.
3. The back of cured tyre patches was veined with fiber cord.
4. The cushion gum was an interface for cured tyre patch and tyre body. Also use the
rubber cement both on repair tyre body and cushion gum. Curing temperature will
be 110℃ - 125℃and timing 2-1/2 hours.
Application: Suitable for retreaded tyre factory to repair damaged radial tyres.

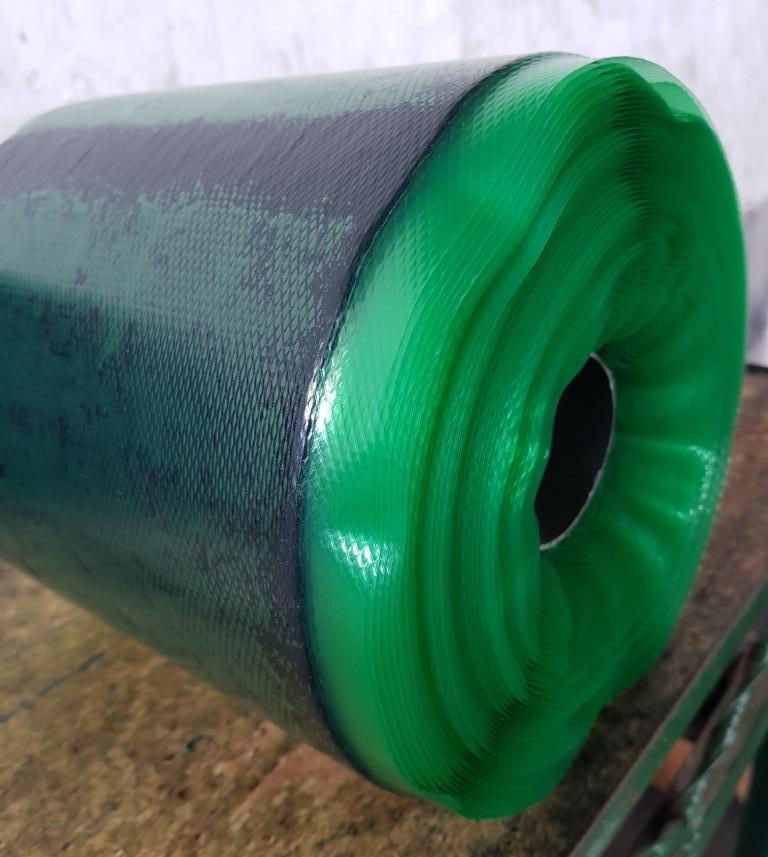

Cushion gum F425
Item no. F425
Fingo high quality cushion gum will be a great benefit for the tire repair retreaded procedures to save cost of operation time and power energy more than 15%.The successful key point of retreaded tire will be a exact vulcanization between tread belt and tire body. So how to choose the intermediate cushion gum which was an important key element.
Item No.F425 Cushion gum has running in the tire retreaded production many years. So we are improve the formula good for tire vulcanization in the treaded process.
Features:
1. Vulcanizing temperature: 110 - 125℃. Max. 125℃.
2. Vulcanizing time: total 2-1/2 hours for light truck tires. 3 hours for truck tires.
3. Stock time: within 6 months.
4. Solution: cushion gum with SBP solvent.
Specifications:
|
Size ( thickness x width ) |
Package |
|
1.5mm x 250mm |
1 kg/ roll |
|
2.5mm x 250mm |
1 kg/roll |
|
3.0mm x 380mm |
5 kgs/roll |
Packing cover sheet will be green colour normal and available blue colour request.
